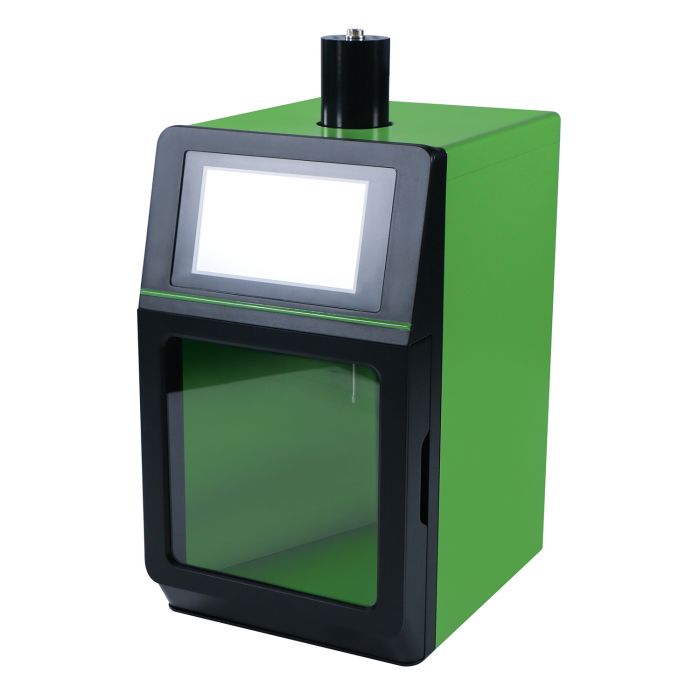

1500W 2-in-1 Integrated Ultrasonic Cell Disruptor Mixer

Instruction Manual   Features:

• 2-in-1 Space-saving DESIGN - The host and soundproof box are combined together, saving a significant amount of space in the lab. An LED light inside facilitates clear observation of sample processing at any time.
• Automatic Energy Compensation: It can automatically operate at the optimal frequency and output level based on the fluidity of the sample.
• Overloading or Overheating Protection: Equipped with a temperature sensor that monitors real-time sample temperature to prevent overloading or overheating.
• Three working modes: The ultrasonic cell crusher offers Continuity, pulse, and work time modes. In Continuity mode, it operates continuously until manually stopped. Pulse mode allows customization of total working time, pulse-on time, and pulse-off time. Work time mode functions until reaching the specified working time.
• 10 groups of user settings storage available for direct operation on a single machine.

Applications:

1. Preparation of composite materials (nano-material dispersion)
2. Life sciences (cell disruption and extraction)
3. Pharmaceutical (extraction of medicinal herbs and plants)
4. Environmental science (extraction of soil organic matter)
5. Sewage Treatment (COD degradation)
6. Homogeneous blending (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)

Specifications:

• Model: FX00018
• Frequency Range: 20KHz
• Output Power: 1500 W
• Duty Ratio: 0-100%
• Probe Diameter: Φ16 mm
• Sample Processing Volume: 0.1～1800ml
• Additional Amplitude Diameter: Φ16 mm
• Packing Size: 17.2” * 14.6” * 26”
• Gross Weight: 20 lbs
• Power Supply: AC 110V, 60 Hz
