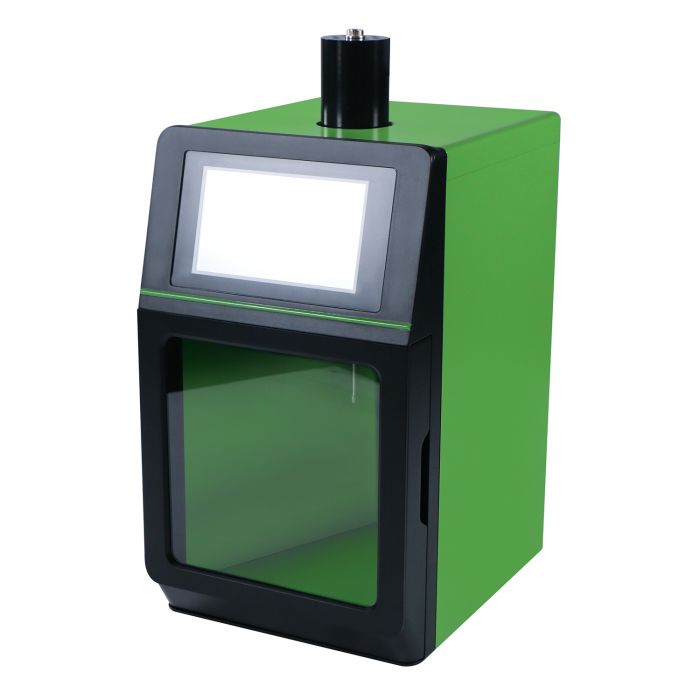

1800W Integrated Type Ultrasonic Homogenizer Ultrasonicator Cell Disruptor Mixer 2-in-1

Instruction Manual

Features:

• 2-in-1 Space-saving DESIGN - Host and soundproof box are combined together, which saves a lot of space in the lab. Meanwhile, a LED light inside helps to observe the sample processing clearly at any time;
• Automatic Energy Compensation: it can automatically work at the best frequency point and output point according to the fluidity of the sample;
• Overloading or Overheating Protection: The equipment is equipped with a temperature sensor testing the temperature of samples in real-time to prevent the machine from overloading or overheating the samples;
• Three working modes: The ultrasonic cell crusher can work in three modes: Continuity, pulse, and work time. In Continuity mode, it will not stop working until you stop it. In pulse mode, you can set total working time, pulse-on time, and pulse-off time. In Work time mode, it will keep working until reach the working time you set;
• 10 groups of users store settings and can be directly operated on a single machine;

Applications:

1. Preparation of composite materials (nano-material dispersion)
2. Life sciences (cell disruption and extraction)
3. Pharmaceutical ( extraction of medicinal herbs and other plants)
4. Environmental science (extraction of soil organic matter)
5. Sewage Treatment (COD degradation)
6. Homogeneous blending (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)

Specifications

• Model: FX00019
• Frequency Range: 20KHz
• Output Power: 1800 W
• Duty Ratio: 0-100%
• Probe Diameter: Φ18 mm
• Sample Processing Volume: 0.1～2200ml
• Additional Amplitude Diameter: Φ18 mm
• Packing Size: 17.2” * 14.6” * 26”
• Gross Weight: 20 lbs
• Power Supply: AC 110V, 60 Hz
