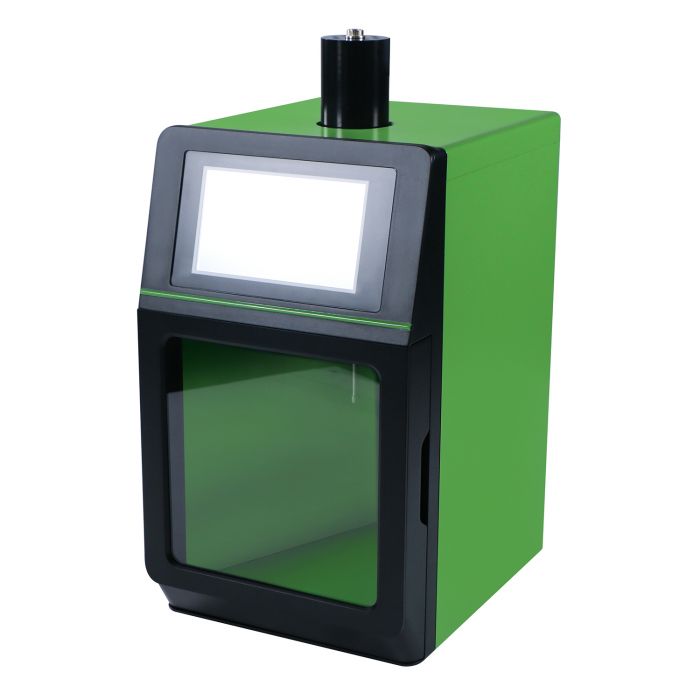

2000 W 2-in-1 Integrated Ultrasonic Cell Disruptor Mixer

Instruction Manual Features:

• 2-in-1 Space-saving Design: The host and soundproof box are combined, saving space in the lab. An LED light inside facilitates clear observation of sample processing anytime.
• Automatic Energy Compensation: Adjusts to the best frequency and output point based on sample fluidity.
• Overloading or Overheating Protection: Equipped with a temperature sensor for real-time monitoring to prevent overloading or overheating of samples.
• Three Working Modes: Continuity, pulse, and work time modes are available for different operating needs.
• 10 User Settings: Stores settings for easy operation on a single machine.
• Applications:
  1. Preparation of composite materials (nano-material dispersion)
  2. Life sciences (cell disruption and extraction)
  3. Pharmaceutical (extraction of medicinal herbs and plants)
  4. Environmental science (extraction of soil organic matter)
  5. Sewage Treatment (COD degradation)
  6. Homogeneous blending (accelerated dissolution, chemical reaction synthesis, oil-water emulsification)

Specifications:

• Model: FX00020
• Frequency Range: 20KHz
• Output Power: 2000 W
• Duty Ratio: 0-100%
• Probe Diameter: Φ20mm
• Sample Processing Volume: 0.1～3000ml
• Additional Amplitude Diameter: Φ20 mm
• Packing Size: 17.2” * 14.6” * 26”
• Gross Weight: 20 lbs
• Power Supply: AC 110V, 60 Hz
