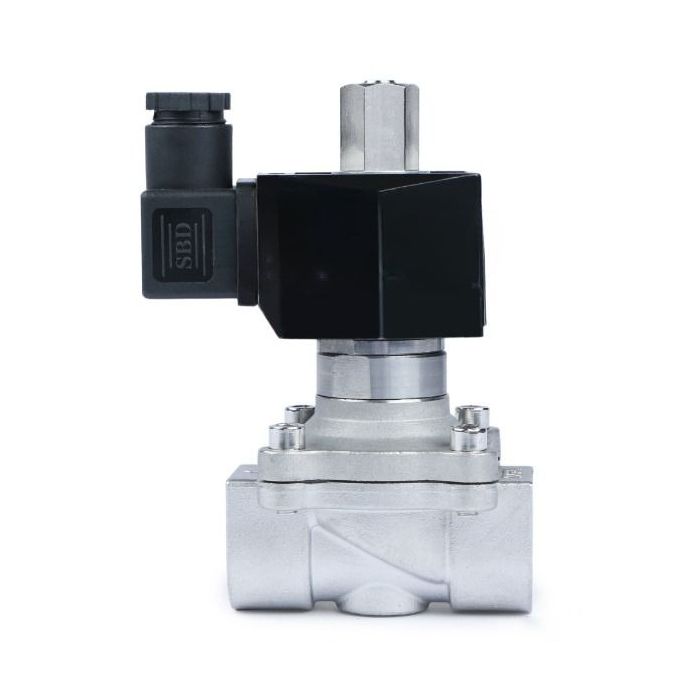

3/4" Stainless Steel 12V DC Solenoid Valve with Viton Seal, Normally Open
This industrial-grade stainless steel solenoid valve is designed for high-temperature projects, offering superior corrosion resistance and ease of welding. It is compatible with diesel fuel, natural gas, air, drinking water, and other water-based projects, making it a versatile tool. Engineered for swift response, it can open or close in less than a second, ensuring instantaneous flow control. With proper maintenance, our engineers estimate its life cycle to exceed a million cycles.
In its default state, the solenoid valve uses a magnetic field to close the orifice and block fluid or gas flow. When energized, the plunger moves and the valve opens. Equipped with a Viton gasket, known for its chemical inertness, it is suitable for use with gasoline, kerosene, and other organic solvents. This direct-acting solenoid valve is versatile across various industries, such as water projects, chemical processing, power generation, and healthcare. Its quick and precise fluid control is ideal for applications ranging from brewing systems to automatic irrigation.
Specifications:
- Size: 3/4"
- Body Material: Stainless Steel
- Flow Aperture: 20 mm
- Gasket / Diaphragm / Seal: VITON
- Rated Voltage: DC 12 V, ± 10%
- Power Rating: 18 W
- Operation Type: Semi-direct lift valve
- Operation Mode: Normally Open
- Operational Pressure Range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
- Flow Capacity: 7.6 gallons per minute (GPM) of water at 60℉ with a pressure drop of 1 PSI
- Operational Temperature: 14 - 248 degrees Fahrenheit
OVERHEATING WARNING: This solenoid valve is not designed for continuous operation and is not a 100% duty cycle. When energized, it will get hot under normal conditions, with the coil reaching a maximum temperature of about 80℃. It fully complies with the national standard: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.
