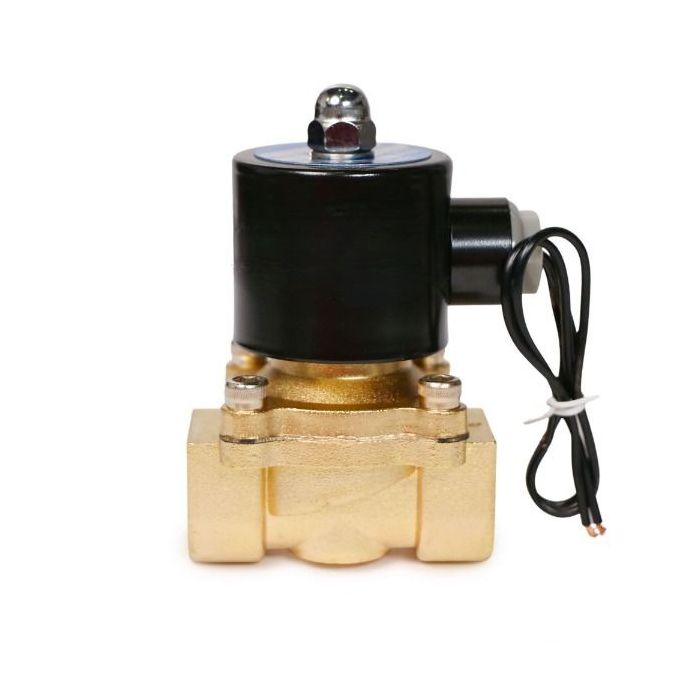

3/4" Zinc Alloy 12V DC Solenoid Valve with NBR Seal

$27.99
In stock
SKU
JFZSV00002

Discover high-quality solenoid valves designed with the latest technologies, available at competitive prices. The Zinc-alloy Solenoid Valves from our USS-ZSV Series are the perfect solution for your applications.

Featuring a zinc alloy valve body, these solenoid valves offer excellent pressure resistance while being more cost-effective than brass or stainless steel alternatives. Check out the specifications below:

  • Pipe Size: 3/4"
  • Flow Aperture: 20 mm
  • Body Material: Zinc Alloy
  • Gasket / Diaphragm / Seal: NBR
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 12V
  • Power Rating: 20 W
  • Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
  • Operational Pressure Range: Air/Water: 0-8 Bar (0 to 116 PSI); Oil: 0-5 Bar (0 to 72 PSI)
  • Flow Value: 7.6 Cv
  • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

Overheating Warning: Please note that these solenoid valves are not designed for continuous operation (not a 100% duty cycle). When energized, under normal conditions, the solenoid valve will heat up. The coil will reach a maximum temperature of about 176°F (80℃), which complies with the national standard: JB/T7352-2010. If energized continuously for more than 8 hours, the coil may burn.
