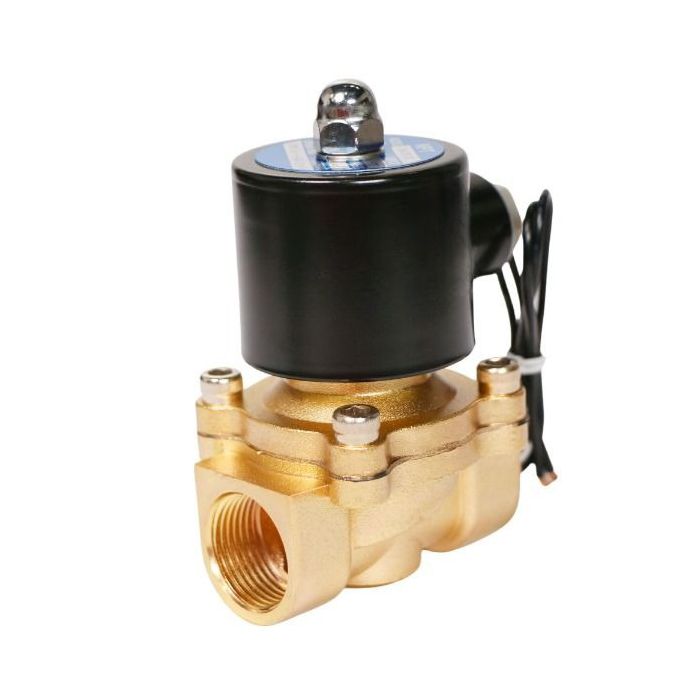

Zinc-Alloy 3/4" 24V DC Solenoid Valve with NBR Seal

$25.99
In stock
SKU
JFZSV00019

Top-Quality Zinc-alloy Solenoid Valves

Our range of solenoid valves are designed using the latest technologies, ensuring top-notch quality at a reasonable price point. The Zinc-alloy Solenoid Valves from our USS-ZSV Series are the perfect solution for your applications.

Key Features:

  • Valve body made of zinc alloy, providing cost-effectiveness without compromising on pressure resistance.
  • Specifications:
    • Pipe Size: 3/4"
    • Flow Aperture: 20 mm
    • Body Material: Zinc Alloy
    • Gasket / Diaphragm / Seal: NBRO
    • Operation Type: Direct Lift Valve
    • Operation Mode: Normally Closed
    • Voltage: DC 24V
    • Power rating: 20 W
    • Suitable Media: Water, oil, Diesel fuel, kerosene etc.
    • Operational pressure range: Air/Water: 0-8 Bar (0 to 116 PSI); Oil: 0-5 Bar (0 to 72 PSI)
    • Flow value: 7.6 Cv
    • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
    • Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
  • OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). The coil may burn if energized continuously for more than 8 hours. The coil temperature will reach a maximum of about 176°F (80℃), complying with national standard: JB/T7352-2010.
