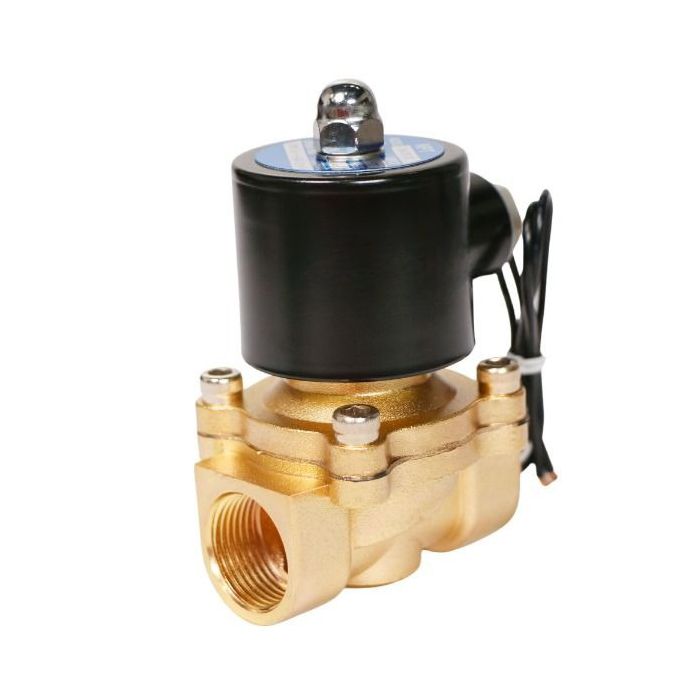

3/4" Zinc-Alloy 24V AC Solenoid Valve with NBR Seal

$27.99
In stock
SKU
JFZSV00014

Discover top-quality valves at competitive prices crafted with the latest technologies available. Our Zinc-alloy Solenoid Valves from the ZSV Series are designed to elevate your applications to the next level.

Featuring a durable zinc alloy valve body, these solenoid valves provide excellent pressure resistance while being a cost-effective alternative to brass or stainless steel bodies. The specifications include:

  • Pipe Size: 3/4"
  • Flow Aperture: 20 mm
  • Body Material: Zinc Alloy
  • Gasket / Diaphragm / Seal: NBRO
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: AC 24V
  • Power rating: 22 VA
  • Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
  • Operational pressure range: Air/Water: 0-8 Bar (0 to 116 PSI); Oil: 0-5 Bar (0 to 72 PSI)
  • Flow value: 7.6 Cv
  • Temperature Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
  • OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). While energized, under normal operating conditions, the solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80℃), which is fully compliant with national standard: JB/T7352-2010. If energized continuously for more than 8 hours, the coil may burn.
