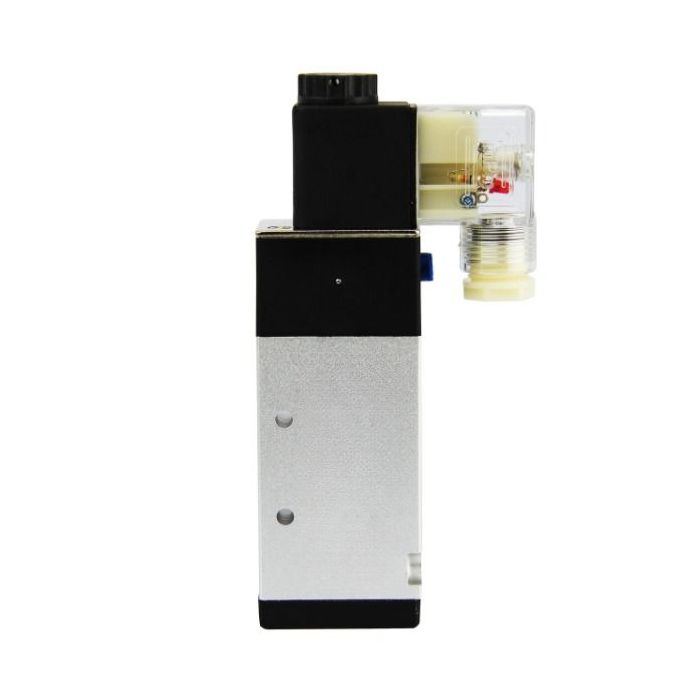

3/8" 5 Way 2 Position Pneumatic Electric Solenoid Valve AC 110 V

The 3/8" NPT 5 Way 2 Position Pneumatic Aluminum Electric Solenoid Valve is a switch designed to direct air to various pneumatic devices, typically actuators, with the capability to enable a small signal to control a larger device. It serves as the intermediary component between electronic controllers and pneumatic systems, enabling pneumatic control over position, flow, pressure, and temperature. With 5 ports including 2 exhaust, 2 power, and 1 supply port, along with 2 flow positions, this valve is constructed from durable aluminum alloy with a 3/8” aperture.

Pneumatic valves, such as this 5/2 valve, find utility across a wide range of industries. For instance, in aircraft applications, they regulate pressure and flow of hot engine air for anti-icing and rain removal on windshields. Similarly, manufacturing machines benefit from pneumatic valves due to their suitability for automation purposes. These pneumatic valves offer attributes like reliability, low power consumption, and extended lifespan, with convenient prewired connections for simplified installation, maintenance, and control.

Specifications:

• Valve Type: 2 Position 5 Way
• Thread Type: NPT
• Operation/ Property: Normally Closed
• Material: Aluminum Alloy
• Size: 3/8"
• Voltage: AC 110 V
• Applicable Media: Filtered Air
• Power Rating (W): 4.5
• Aperture (mm): 30
• Flow Value (Cv): 1.68
• Insulation & Protection: Class F; IP 65
• Working Pressure: 0.0 ~ 0.8 Mpa
• Max. Pressure Resistance: 1.2 Mpa
• Direct Operated/ Pilot Operated: Pilot Operated
• Operation Temperature: -5°C ~ 60°C
• Voltage: ±10%
