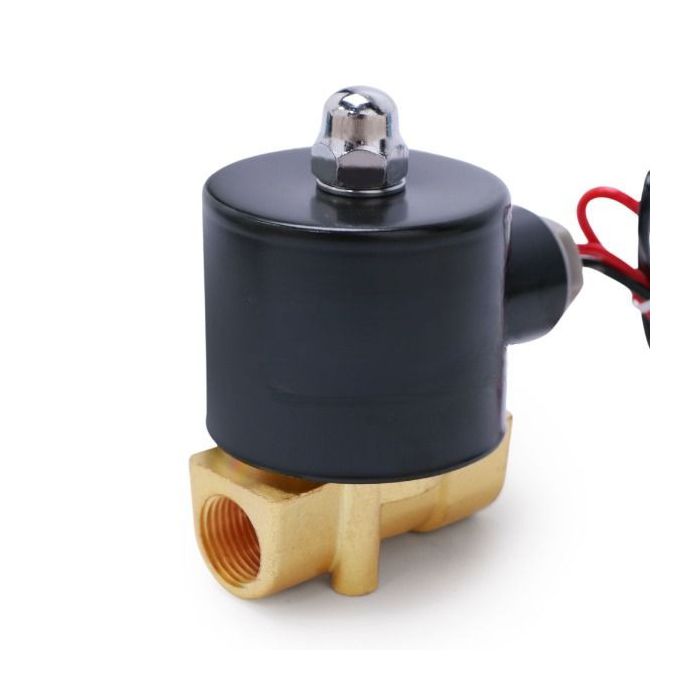

Zinc-Alloy Solenoid Valve - 3/8" 24V DC with NBR Seal

$21.99
In stock
SKU
JFZSV00017
ZSV Series Zinc-alloy Solenoid Valves

ZSV Series Zinc-alloy Solenoid Valves

Our company specializes in utilizing advanced technologies to produce high-quality valves at competitive prices. The Zinc-alloy Solenoid Valves from the USS-ZSV Series are reliable tools for various applications.

Product Specifications:

  • Pipe Size: 3/8"
  • Flow Aperture: 4 mm
  • Body Material: Zinc Alloy
  • Gasket / Diaphragm / Seal: NBR
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 24V
  • Power rating: 20 W
  • Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
  • Operational pressure range:
    • Air/Water: 0-8 Bar (0 to 116 PSI)
    • Oil: 0-5 Bar (0 to 72 PSI)
  • Flow value: 0.6 Cv
  • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
  • OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). While energized, under normal operating conditions, solenoid valve will get HOT. The coil will reach a maximum temperature of about 176°F (80℃), which is fully compliant with national standard: JB/T7352-2010. If energized continuously for more than 8 hours the coil may burn.
