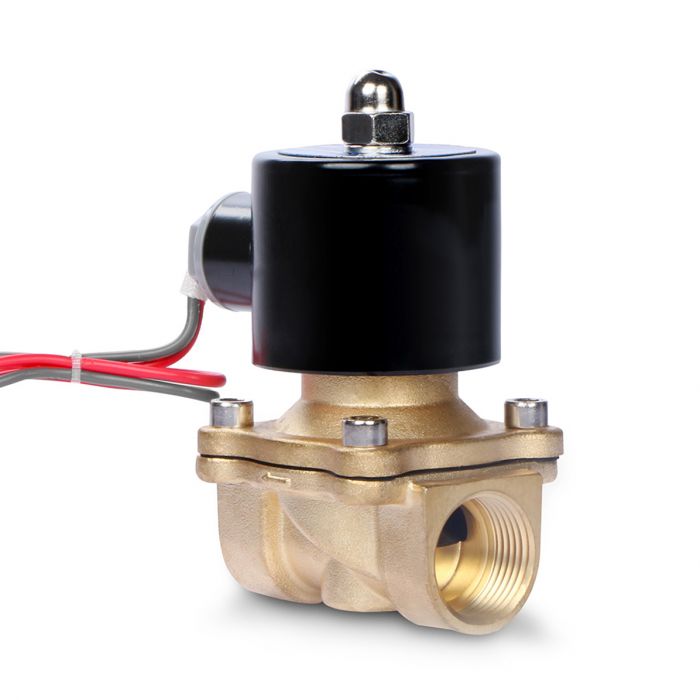

Electric Solenoid Valve- 1/2" 24V AC Brass Body Normally Closed with NBR Seal
These normally closed (N/C) electric solenoid valves are made of a durable brass body with two-way inlet and outlet ports featuring one-half inch (1/2") female threaded (NPT) connections and a nitrile rubber (NBR) gasket. They are suitable for a variety of uses including hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel.
The solenoid valves have a rating of IP65, indicating their resistance to water spray. For outdoor installations, it is recommended to enclose the valves in protective housing as they are not suitable for underwater use. Customers commonly choose these valves for do-it-yourself projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or home brewing.
Specifications:
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: NBR
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power rating: 20 VA
- Suitable Media: Air, water, diesel oil, kerosene, etc.
- Operational Pressure Range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow Capacity: 4.8 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 4.8 Cv
- Temperature, Minimum: 23 degrees Fahrenheit (-5 degrees Celsius)
- Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
OVERHEATING WARNING: These solenoid valves are not designed for continuous operation and do not have a 100% duty cycle. Under normal operating conditions, the coil will reach a maximum temperature of about 176°F (80°C). If energized continuously for more than 8 hours, the coil may burn.
