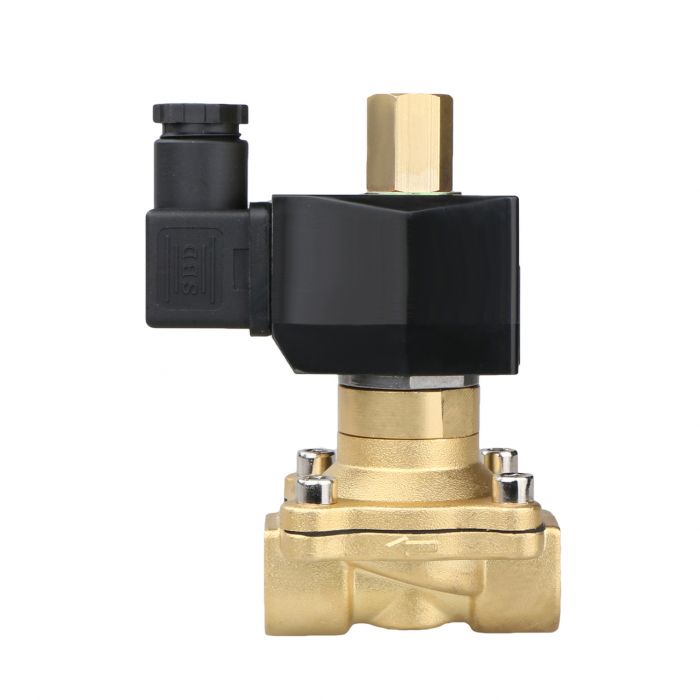

Electric Solenoid Valve- 1/2" 24V AC Brass Body Normally Open, NBR SEAL
Our normally open (N/O) electric solenoid valve features a durable brass body, 1/2" female threaded (NPT) connections, and nitrile rubber (NBR) seals. Designed for handling hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst), and oils. The IP65 rating ensures resistance to water spray, but for outdoor installations, consider using protective housing. Not suitable for underwater use.
Customer Applications
- Do-it-yourself projects
- Moderate temperature applications
- Water exchange for aquarium
- Air horn
- Bleeding moisture from an air tank
Specifications
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: NBR
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Open
- Voltage: AC 24V ± 10%
- Power rating: 21 VA
- Suitable Media: Air, water, diesel oil, kerosene, etc.
- Operational pressure range: Air/Water: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 4.8 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 4.8 Cv
- Temperature, Minimum: 23°F (-5°C)
- Temperature Maximum: 176°F (80°C)
OVERHEATING WARNING: Not intended for continuous operation (not a 100% duty cycle). Heating may occur during energized state. The coil temperature can reach a maximum of about 176°F (80℃). For safety, comply with national standard: JB/T7352-2010. Prolonged energization exceeding 8 hours may cause coil burn.
WARNING: This product may contain chemicals including lead, known in the State of California to cause cancer and birth defects. For more details, visit www.P65Warnings.ca.gov.
