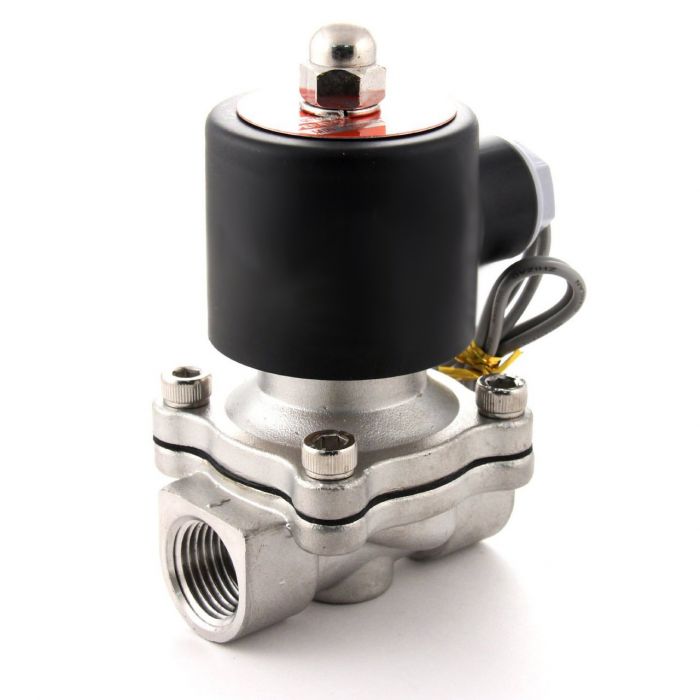

Electric Solenoid Valve- 1/2" 24V DC Stainless Steel Solenoid Valve with Normally Closed Feature and VITON SEAL
Electric solenoid valve with normally closed (N/C) operation, featuring a high-quality stainless steel construction. Includes two-way inlet and outlet ports with one-half inch female threaded (NPT) connections and a heat and oil resistant Viton gasket. Suitable for a variety of applications such as hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel. Designed with an IP65 rating to withstand water spray, making it ideal for general purpose use in projects such as irrigation systems, reverse osmosis systems, and home brewing. Not suitable for underwater use.
Specifications:
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Stainless Steel
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Semi-direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 24V ± 10%
- Power rating: 20 W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
- Operational pressure range:
- Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI)
- Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 4.8 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
- Flow value: 4.8 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
OVERHEATING WARNING: Not designed for continuous operation (not a 100% duty cycle). The solenoid valve may get hot during energization, with the coil reaching a maximum temperature of about 176°F (80℃). Compliance with national standard: JB/T7352-2010. Continuous energization for over 8 hours may lead to coil burning.
