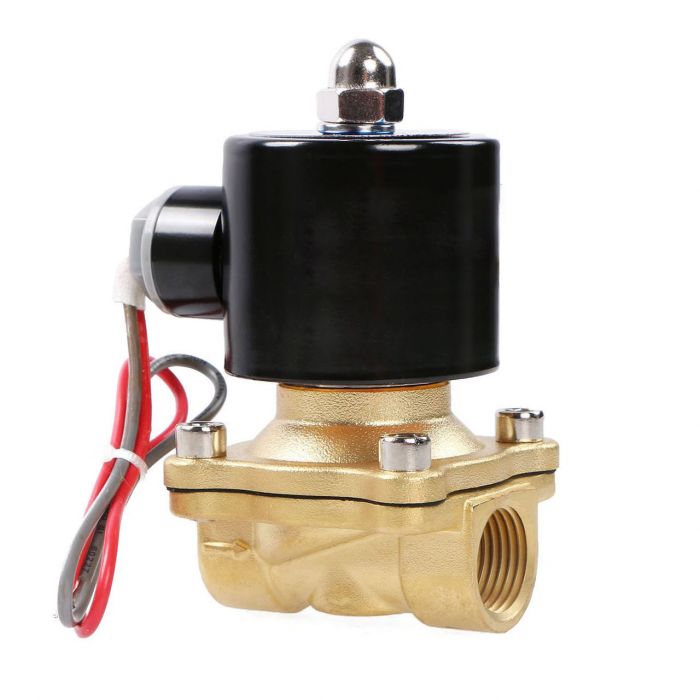

Electric Solenoid Valve - 1/2" 24V AC Brass Body Normally Closed with VITON SEAL
An electric solenoid valve with normally closed (N/C) operation is crafted from high-quality brass, featuring two-way inlet and outlet ports with half-inch female threaded connections. Equipped with a heat and oil resistant Viton gasket, this valve is suitable for a variety of applications such as hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, and diesel fuel.
Rated IP65, these solenoid valves can withstand water spray, but it is recommended to enclose them in protective housing if permanently installed outdoors. Not suitable for underwater use. Customers often choose this general purpose valve for DIY projects, moderate temperature applications, handling harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or home brewing.
Specifications
- Pipe Size: 1/2"
- Flow Aperture: 16 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Semi-Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: AC 24V ± 10%
- Power rating: 21 VA
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar (0 to 72 PSI)
- Flow capacity: 4.8 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 4.8 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature Maximum: 248°F (120°C)
Also available with Stainless Steel body: Item # USS2-00071
OVERHEATING WARNING: This valve is not designed for continuous operation (not a 100% duty cycle). While energized, it may become hot. The coil can reach a maximum temperature of about 176°F (80℃), compliant with the national standard JB/T7352-2010. Continuous energization for more than 8 hours may lead to coil burnout.
