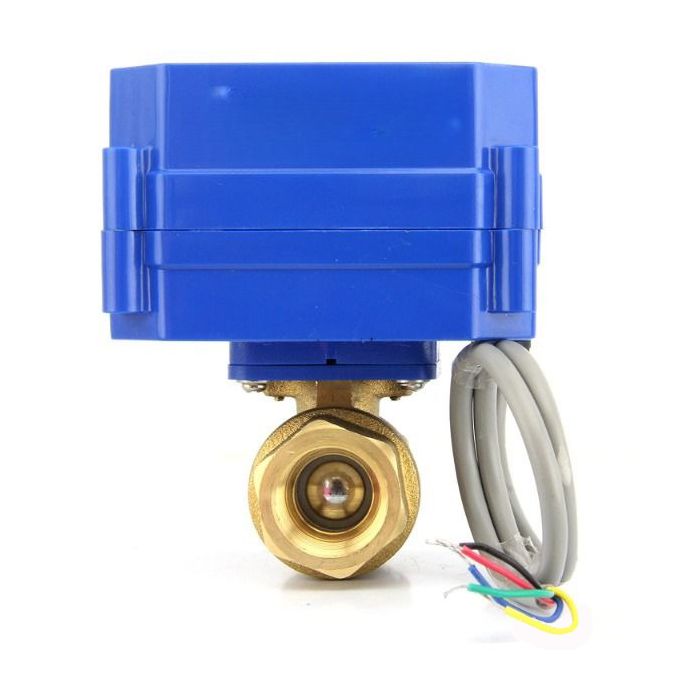

Motorized Ball Valve - 3/4" Brass Electrical Ball Valve with Standard Port, 9-24 V DC, 5 Wire Setup
Motorized Ball Valves
Motorized ball valves play a crucial role in a wide range of applications. This particular model is designed to open and close in 6-8 seconds, maintaining its new position with minimal energy consumption. This sets it apart from many solenoid valves, which typically remain energized continuously when in a new position. Motorized ball valves only use energy during the transition between open and closed states.
The 5-wire model is especially useful in situations where displaying the valve status is important. Clear wiring diagrams and instructions guide you through the process of connecting the valve to power and integrating the status indicator wires. Ideal for home automation systems, this 5-wire model offers convenience and versatility.
Motorized ball valves find applications in various home systems, serving as reliable emergency backups for water systems and earning popularity among home brewers. Known for combining industry-quality construction with affordability, these valves are a practical choice for individual buyers.
Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 6-8 Seconds
- Working Voltage: 9-24V DC
- Max Power: 5 W
- Max Torque: 6 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 5 Wire Setup
