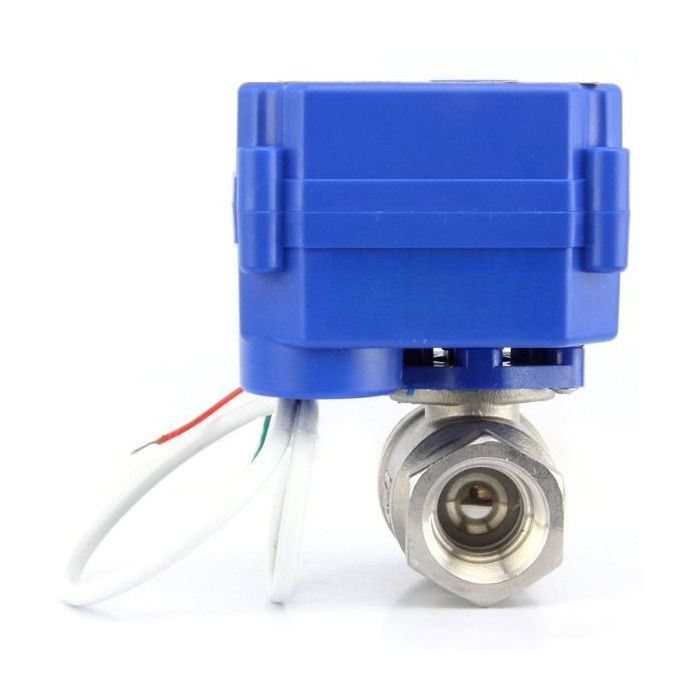

3/4" Stainless Steel Motorized Ball Valve with Standard Port, 85-265 V AC, 2 Wire Auto Return

$28.12
In stock
SKU
JFMSV00054

Motorized ball valves are an essential component in a wide range of applications. This stainless steel model with a 3/4” size is designed to open and close within 6-8 seconds, maintaining its position without using any additional energy. One significant advantage of motorized ball valves over many solenoid valves is their minimal energy consumption. Unlike most solenoid valves that remain energized continuously in their position, motorized ball valves only use energy when transitioning between open and closed states. These valves are commonly integrated into home automation systems and can serve as crucial backups for water systems. Home brewers particularly appreciate their reliability and efficiency.

Our motorized ball valves are engineered for industry-grade quality while being accessible to individual buyers. Here are the specifications of our motorized ball valve:

  • Valve Material: Stainless Steel (SS304)
  • Ball Seat: PTFE
  • Seal: EPDM
  • Operating Time: 3-5 Seconds
  • Working Voltage: 85-265 V AC
  • Max Power: 5 W
  • Max Torque: 2 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 100°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Standard
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
