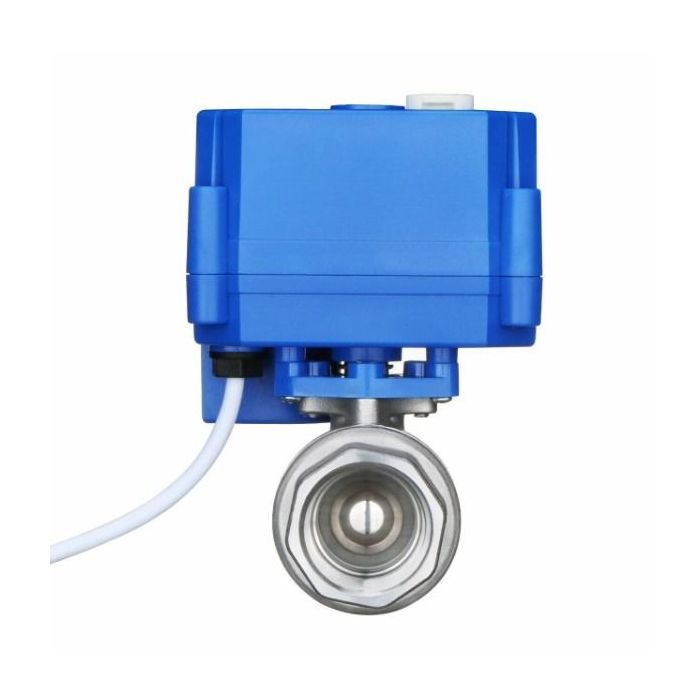

3/4" Stainless Steel Motorized Ball Valve with Manual Feature, Full Port, 9-24V AC/DC, and 2-Wire Auto Return System
The motorized ball valve in stainless steel with automatic return is a convenient solution for home applications. Crafted from SS304 stainless steel, the valve is suitable for use with drinking water systems. It activates with 9-24V of DC or AC power and features a Normally Closed automatic return function that opens in 6-8 seconds. Utilizing limit switches to minimize energy consumption, the valve automatically closes in the event of a power outage. Unlike traditional solenoid valves, this valve's low energy usage prevents overheating, promoting safety and reliability. The IP65 rating ensures protection against dust and water, making it suitable for various environments. Equipped with a Position Indicator and manual control option, the valve offers added convenience and flexibility.
Specifications
Valve Material: SS304
Ball Seal: PTFE
Close/Open Time: 6~8 Seconds
Working Voltage: 9-24V AC/DC
Max Power: 5 W
Max Torque: 2.5 N m
Max Pressure: 1.0 MPa
Temperature range for flow medium: 0°C to 100°C
Ambient Temperature Range: -5°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Bore Type: Full
Thread Type: NPT
