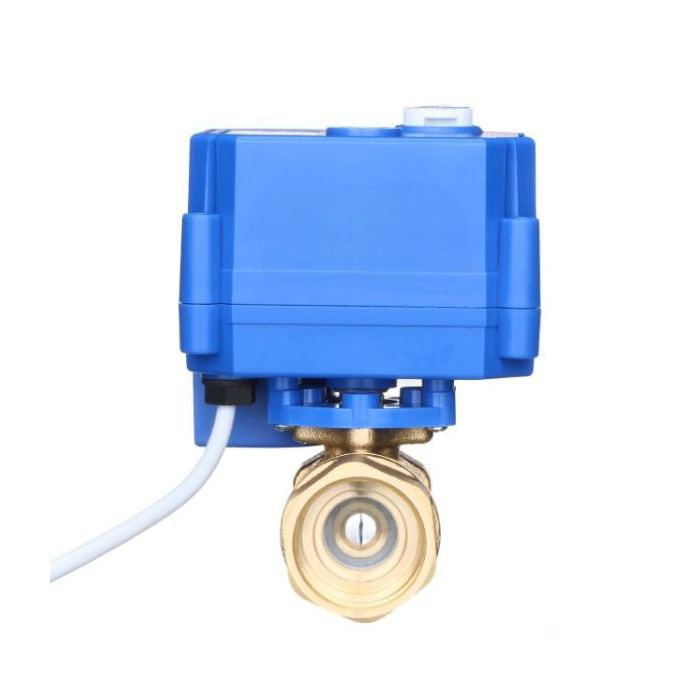

Motorized 3/4" Brass Ball Valve with Manual Function, Standard Port, 9-24V AC/DC and Auto Return Setup
The 3/4'' motorized ball valve with an automatic return is a valuable addition for home improvement enthusiasts. This valve is crafted with a durable brass body and operates with 9V to 24V of DC or AC power. It features a Normally Closed automatic return function that opens within 6-8 seconds when energized.
Unlike most solenoid valves that may overheat when fully open, this valve consumes minimal energy once fully activated, eliminating the risk of overheating. The automatic return feature is an essential safety measure, ensuring that the valve closes automatically during power outages to prevent leaks or flooding.
With an IP65 rating, this valve offers protection against dust and water, making it suitable for various environments. The Position Indicator allows for easy monitoring of the valve's status, while the manual function enables manual adjustments or operation in case of power failure.
Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Close/Open Time: 6~8 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2.5 N m
- Max Pressure: 1.0 MPa
- Temperature Range for Flow Medium: 0°C to 100°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000-100,000 Cycles
- Bore Type: Standard Port
- Thread Type: NPT
Instruction Manual Included
