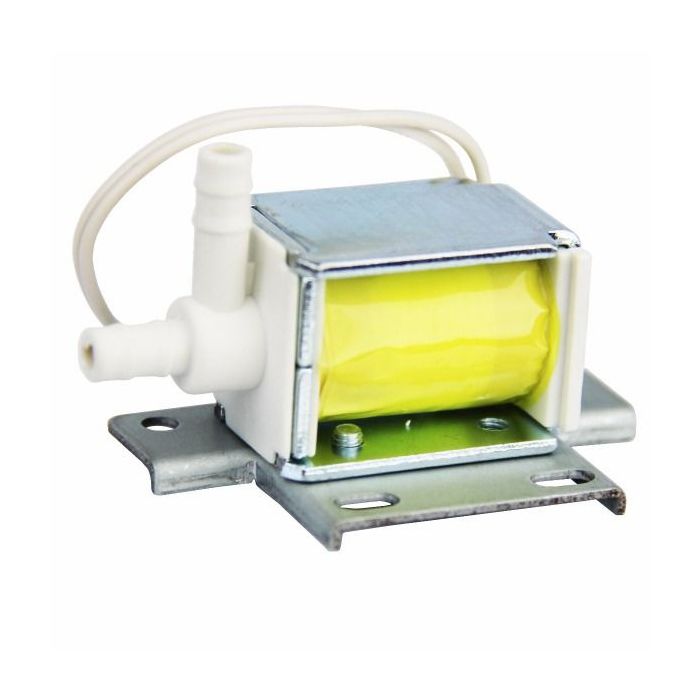

Two-Way Angle Mini Air Solenoid Valve DC 12V
This Two-Way Angle Mini Air Solenoid Valve is a compact valve designed for precise air control in various applications such as medical equipment and industrial machinery. As a 2-way valve, it allows for easy on/off airflow regulation with one inlet and one outlet. Crafted from durable industrial-grade materials, this lightweight valve weighs only 2 oz. and measures 30mm x 50mm x 20mm, making it ideal for space-restricted installations.
With low vibration and power consumption, this mini valve is suitable for use with mini pumps. Common uses in the medical field include blood pressure monitors, oxygen condensers, and respiratory machines. Additionally, it can be applied in automotive seat cushions, air pillows, and air monitoring instruments. Easy to install and reliable in operation, this mini air valve is a versatile and practical solution for air control needs.
Specifications:
- Valve Type: 2 Way
- Operation/Property: Normally Closed
- Voltage: DC 12 V
- Applicable Media: Air
- Power Rating (W): 3.6
- Working Pressure: 13.3 ~ 46.7 KPa
- Max. Pressure Resistance: 46.7 KPa
- DC Resistance: 50ohm±15%
- Operation Temperature: 5°C - 30°C
- Rated Current: ≤300mA
- Weight: 2 oz.
