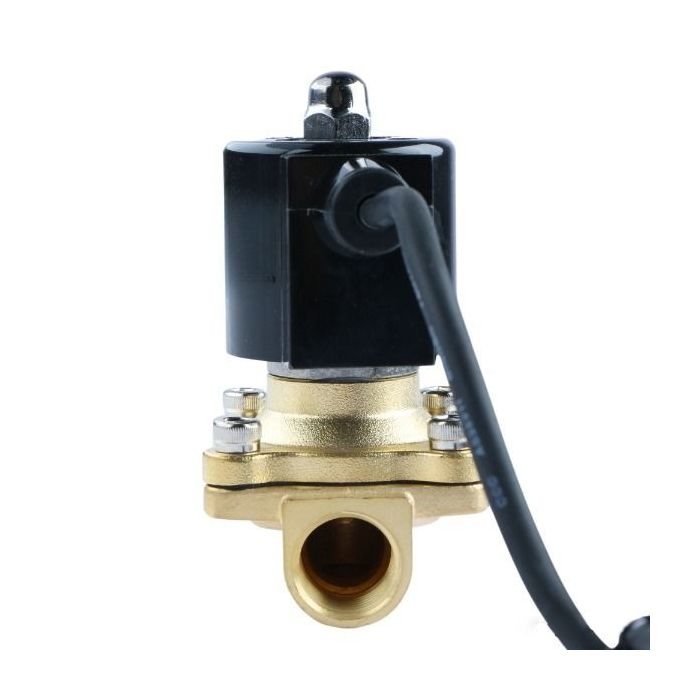

1/2" Brass Electric Solenoid Valve Underwater Valve 110V AC Normally Closed VITON Air Water Oil Fuel IP67

$36.99
In stock
SKU
JFNSV00006

Our high-quality normally closed (N/C) electric solenoid valve is crafted from durable brass with 1/2" female threaded (NPT) connections and a reliable VITON gasket. It is suitable for applications with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst), gasoline, or other petroleum-based liquids. Customers have chosen this versatile valve for a variety of uses, including supplemental gas tanks and sprinkler systems.

For underwater applications, our specially designed solenoid valve for diving work features a coil sealed with epoxide resin, providing superior waterproof performance compared to standard solenoid valves. It is ideal for water control in various fountain settings.

Specifications

  • Model: USS-NSV00006
  • Size: 1/2"
  • Flow Aperture: 16 mm
  • Body Material: Brass
  • Gasket/Diaphragm/Seal: VITON
  • Rated voltage: AC 110 V, ±10%
  • Current: 0.236 A
  • Power rating: 22 VA
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Level of protection: IP67
  • Operational pressure range: 0 to 116 PSI / 0-0.8 MPa (for Air, Water); 0 to 72 PSI / 0-0.5 MPa (for Oil)
  • Medium temperature range: -10℃ - 120℃ (-14℉ - 248℉)
  • Ambient temperature: -10℃ - 50℃
  • Flow capacity: 4.8 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 4.8 Cv
  • Length of cable: 1 m
  • Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene, etc.
  • Cannot be used in strong acid, strong base, waste water, industrial gas, and other media containing many impurities.

OVERHEATING WARNING: While energized under normal operating conditions, the solenoid valve will generate heat. The coil will reach a maximum temperature of about 80℃. It fully complies with the national standard: JB/T7352-2010. Continuous energization for no more than 24 hours at a time is recommended.

CA PROP65 WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. Federal law prohibits installation for potable water use in the U.S.A. and its territories.
