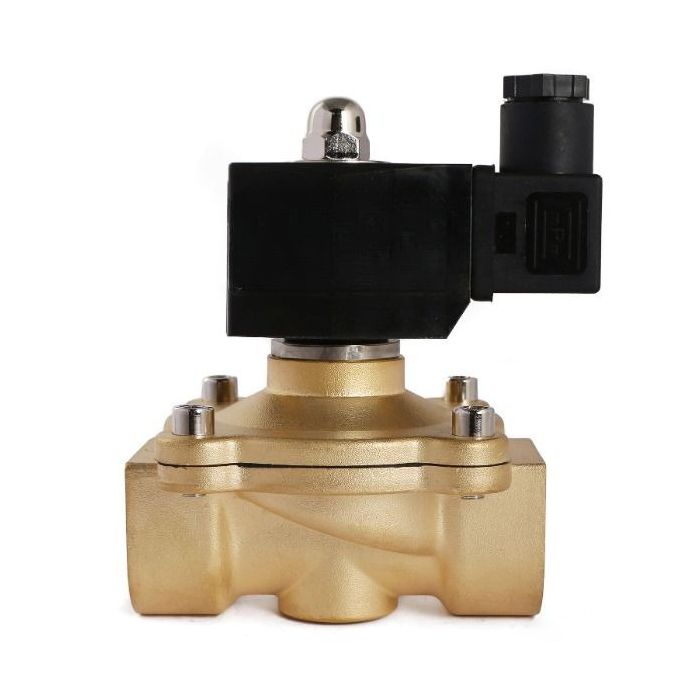

1" Brass Electric Solenoid Valve 12V DC Normally Closed VITON for Air Water Oil Fuel

$49.99
In stock
SKU
JFNSV00005

General purpose electric solenoid valve features a durable brass body, 1" female threaded connections, and a strong VITON gasket. Suitable for hot or cold water, natural gas, air, low viscosity fluids, gasolines, and other petroleum liquids. Ideal for supplemental gas tanks, sprinkler systems, and more.

Specifications:

  • Model: NSV00005
  • Size: 1"
  • Flow Aperture: 25 mm
  • Body Material: Brass
  • Gasket / Seal Material: VITON
  • Rated Voltage: DC 12V
  • Current: 1A
  • Power Rating: 22W
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Protection Level: IP65
  • Operational Pressure Range: 0-116 PSI for Air and Water, 0-72 PSI for Oil
  • Minimum Temperature: -10°C
  • Maximum Temperature: 120°C
  • Flow Capacity: 12 GPM of water at 60°F with 1 PSI pressure drop
  • Flow Value: 12 Cv
  • Suitable Media: Air, Water, Oil, Natural Gas, Diesel Fuel, Kerosene, etc.
  • Not suitable for strong acid, strong base, waste water, industrial gas, or media with impurities.

Overheating Warning: During operation, the solenoid valve may become hot with a coil temperature reaching up to about 80°C. Recommended not to be energized continuously for more than 24 hours at a time. Complies with national standard JB/T7352-2010.

CA Prop 65 Warning: This product may expose you to chemicals including lead, known to the State of California to cause cancer, birth defects, or other reproductive harm. Not for potable water use in the USA and its territories.
