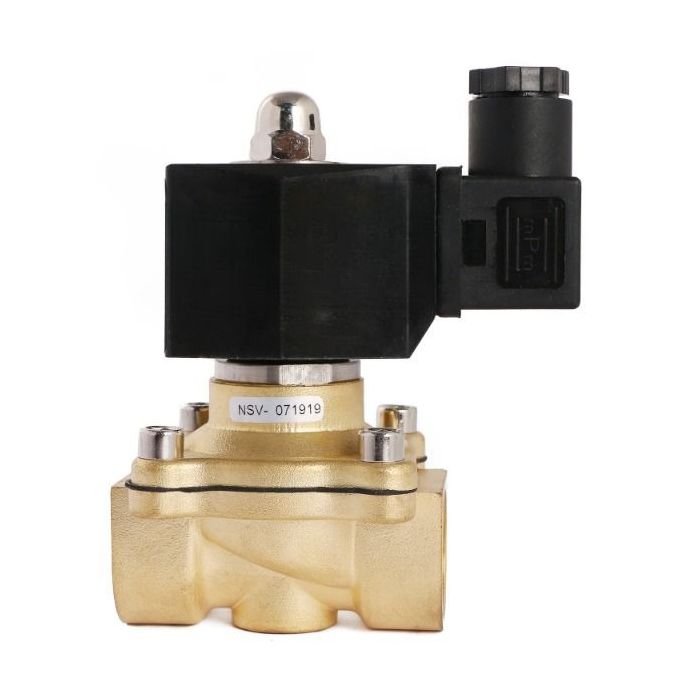

3/4" Brass Electric Solenoid Valve 12V DC Normally Closed with VITON Seal for Air Water Oil Fuel
Our normally closed (N/C) electric solenoid valve is made with a durable brass body, 3/4" female threaded (NPT) connections, and a strong VITON gasket. Suitable for various applications, including hot or cold water, natural gas, air, low viscosity fluids (< 20 cst), and gasoline or other petroleum-based liquids. Customers commonly choose this general-purpose valve for supplemental gas tanks, sprinkler systems, and more.
- Specifications:
- Model: NSV00004
- Size: 3/4"
- Flow Aperture: 20 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Rated voltage: DC 12 V, ±10%
- Current: 1A
- Power rating: 22 W
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Level of protection: IP65
- Operational pressure range: 0 to 116 PSI / 0-0.8 MPa (for Air, Water); 0 to 72 PSI / 0-0.5 MPa (for Oil)
- Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
- Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
- Flow capacity: 7.6 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow value: 7.6 Cv
- Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene, etc.
- Not suitable for use in strong acid, strong base, waste water, industrial gas, and other media containing many impurities
OVERHEATING WARNING: While energized, under normal operating conditions, the solenoid valve will get HOT. The coil will reach a maximum temperature of about 80°C. It is fully compliant with national standard JB/T7352-2010. Continuous energization for no more than 24 hours at a time is recommended.
CA PROP65 WARNING: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. They are not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
