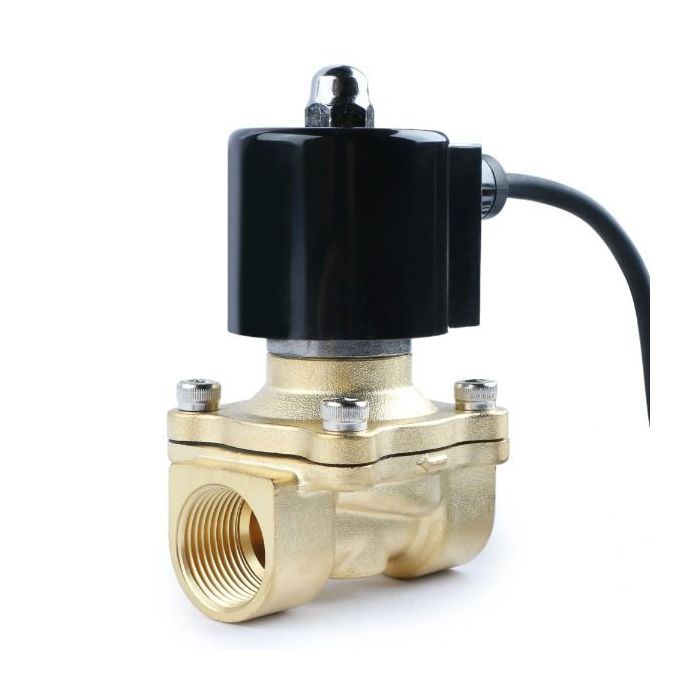

Underwater Electric Solenoid Valve 3/4" Brass 110V AC Normally Closed VITON for Air Water Oil Fuel IP67
Electric solenoid valve with a durable brass body, 3/4" female threaded connections, and strong VITON gasket. Suitable for various fluids including hot or cold water, natural gas, air, low viscosity fluids, and petroleum-based liquids. Ideal for gas tanks, sprinkler systems, and underwater use for diving work. The coil is sealed with epoxy resin for enhanced waterproof performance. Specifically designed for water control in fountains.
Specifications
- Model: USS-NSV00007
- Size: 3/4"
- Flow Aperture: 20 mm
- Body Material: Brass
- Gasket/ Diaphragm/ Seal: VITON
- Rated Voltage: AC 110 V, ±10%
- Current: 0.236 A
- Power Rating: 26 VA
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Level of Protection: IP67
- Operational Pressure Range: 0 to 116 PSI (Air, Water); 0 to 72 PSI (Oil)
- Medium Temperature Range: -10℃ - 120℃
- Ambient Temperature: -10℃ - 50℃
- Flow Capacity: 7.6 GPM of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 7.6 Cv
- Length of Cable: 1 m
- Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene, etc.
- Cannot be used in strong acid, strong base, waste water, industrial gas, and media with impurities
Important Warnings
While energized, the solenoid valve will get hot. The coil reaches a maximum temperature of about 80℃. Complies with national standard JB/T7352-2010, recommended not to be energized continuously for more than 24h at a time.
CA PROP65 WARNING: This product can expose you to chemicals including lead, known to cause cancer and birth defects or other reproductive harm. Not for potable water use in the USA and its territories.
