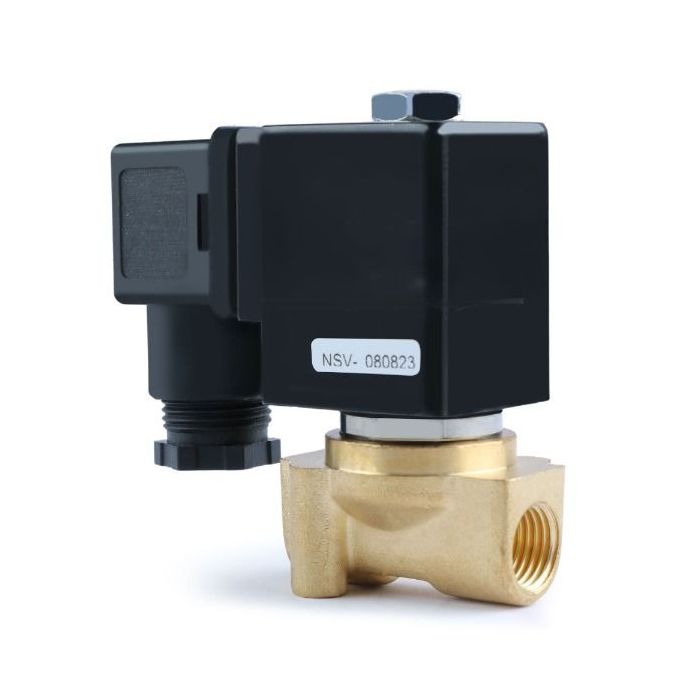

1/4" Brass Electric Solenoid Valve 12V DC Normally Closed VITON for Air Water Oil Fuel

$18.99
In stock
SKU
JFNSV00001

Electric solenoid valve with normally closed (N/C) operation, featuring a durable brass body, 1/4" female threaded (NPT) connections, and a strong VITON gasket. Suitable for a variety of applications including hot or cold water, natural gas, air, low viscosity fluids, and petroleum-based liquids such as gasoline. Customers commonly select this general purpose valve for tasks like supplemental gas tanks, sprinkler systems, and more.

Specifications:

  • Model: NSV00001
  • Size: 1/4"
  • Flow Aperture: 2.5 mm
  • Body Material: Brass
  • Gasket / Diaphragm / Seal: VITON
  • Rated voltage: DC 12 V, ±10%
  • Current: 1A
  • Power rating: 12 W
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Level of protection: IP65
  • Operational pressure range: 0 to 116 PSI / 0-0.8 MPa (for Air, Water); 0 to 72 PSI / 0-0.5 MPa (for Oil)
  • Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
  • Flow capacity: 0.23 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI
  • Flow value: 0.23 Cv
  • Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc.
  • Cannot be used in strong acid, strong base, waste water, industrial gas, and other impurity-rich media

Overheating Warning: While energized, under normal operating conditions, this solenoid valve will generate heat. The coil may reach temperatures of up to about 80℃. It is fully compliant with the national standard: JB/T7352-2010. Continuous energization for periods longer than 24 hours at a time is not recommended.

CA PROP65 Warning: This product may expose you to chemicals including lead, known to the State of California to cause cancer and reproductive harm. Installation for potable water use in the U.S.A. and its territories is prohibited by federal law.
