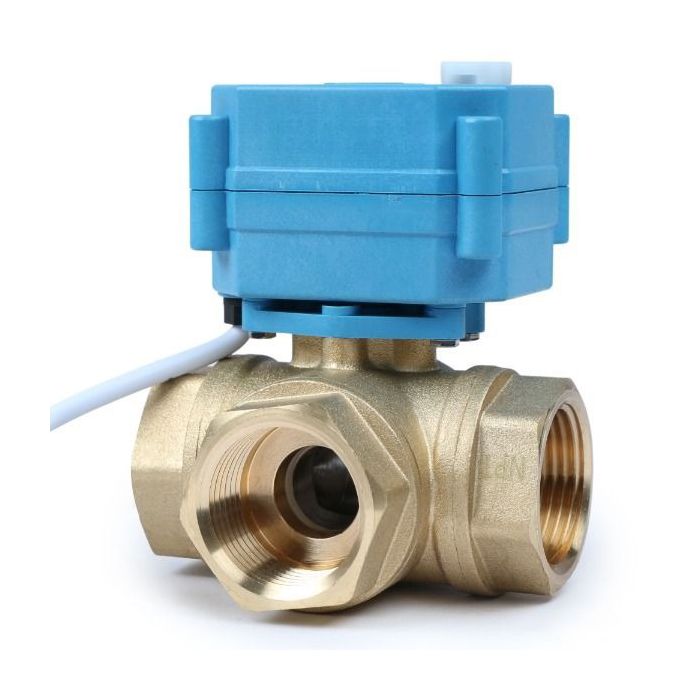

1" 3 Way Brass Motorized Ball Valve, AC110-230V, L Type, Standard Port, with Manual Function, IP67
$59.26
In stock
SKU
JFMSV10017
Designed for user-friendly and durable performance, this three-way valve offers a variety of features for efficient water control. Upon power connection, water flows from the left port, and when the power is disconnected, water flows from the right port. The flow direction can be manually adjusted using the hand-wheel for added versatility.
Product Specifications:
- Model: MSV10017
- Valve Body Material: Brass
- Port Size: 1''
- Voltage: AC110-230V
- Max. Torque: 3 N m
- Open/Close Time: ~ 5 seconds
- Max. Power: 5 W
- Max. Pressure: 1.0 MPa
- Flow Medium Temp. Range: 0 to 90 ℃
- Ambient Temp. Range: -15 ℃ to 50℃
- Life Time: ≥70000 times
- Actuator Material: PPO
- O-ring: FKM
- Sealing: PTFE
- Manual Override: Yes
- On/Off Indicator: Yes
- IP Rating: IP 67
- Bore Type: Standard Port
- Item Dimension: 3.94*2.17*2.60 in
- Item Weight: 2.14 lb
