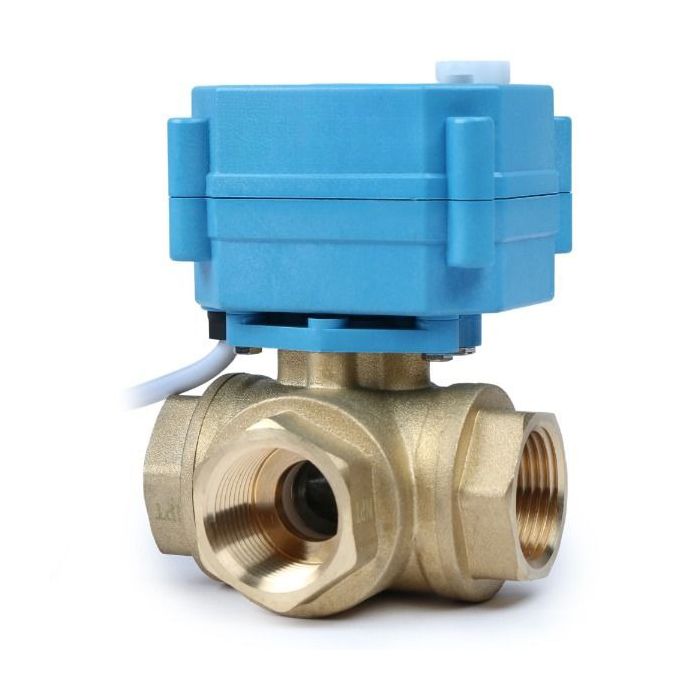

Motorized Brass 3-Way Ball Valve, 3/4" Size, 9-24V AC/DC, L Type, Standard Port, with Manual Function, IP67 Protection Grade

$42.34
In stock
SKU
JFMSV10004

Designed for user-friendly and durable performance, this three-way valve is equipped with a variety of features to cater to different voltage configurations, including integrated limit switches, two-wire control, and a built-in capacitor return that enhances both current usage and water conservation.

When connected to power, water is directed to flow from the left port, and upon disconnection of power, water will flow from the right port. For added flexibility, the flow direction can also be adjusted manually using the hand-wheel.

Specifications:

  • Model: MSV10004
  • Valve Body Material: Brass
  • Port Size: 3/4''
  • Voltage: 9-24V AC/DC
  • Max. Torque: 3 N m
  • Open/Close Time: ~ 5 seconds
  • Max. Power: 5 W
  • Max. Pressure: 1.0 MPa
  • Flow Medium Temp. Range: 0 to 90 ℃
  • Ambient Temp. Range: -15 ℃ to 50℃
  • Life Time: ≥70000 times
  • Actuator Material: PPO
  • O-ring: FKM
  • Sealing: PTFE
  • Manual Override: Yes
  • On/Off Indicator: Yes
  • IP Rating: IP 67
  • Bore Type: Standard Port
  • Item Dimension: 7.2.95*2.87*3.94 in
  • Item Weight: 1.68 lb
