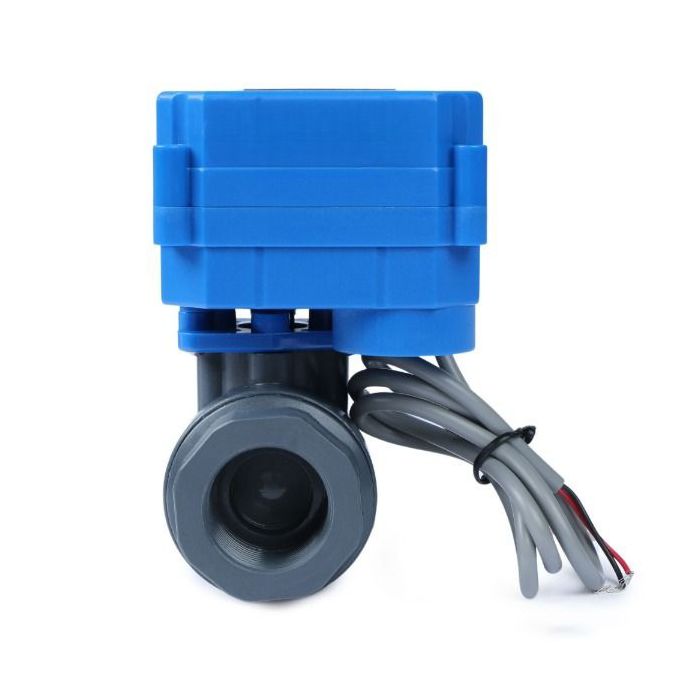

3/4" Motorized UPVC Ball Valve - 9-36V AC/DC Plastic Electric Valve with Full Port, 2 Wire Auto Return, Normally Closed
The motorized ball valve features a sturdy UPVC valve body, known for its exceptional durability and longevity compared to PVC alternatives. This UPVC construction ensures longevity and results in a lighter valve compared to those with brass or stainless steel bodies, making installation on various pipelines easier. Additionally, the lead-free body of the valve makes it safe for use in drinking water pipelines, providing a secure solution for such applications.
The 2 wire auto return model is perfect for situations where the valve needs to be closed in case of a power loss. This model allows for simple operation by energizing to open and consuming minimal energy once fully opened. To close the valve, simply disconnect the power supply. This design enables easy operation with a basic on/off switch – when switched on, the valve remains open, and when switched off, it automatically closes.
Specifications:
Model: MSV00092
Size: 3/4 inches
Material: UPVC
Thread Type: NPT
N.C./N.O.: Normally Closed
Input Voltage: 9-36V AC/DC
Wiring Type: 2 Wire Auto Return
Max Pressure: 1.0 Mpa
Ambient Temperature: 33℉-122℉
Medium Temperature: 33℉-131℉
