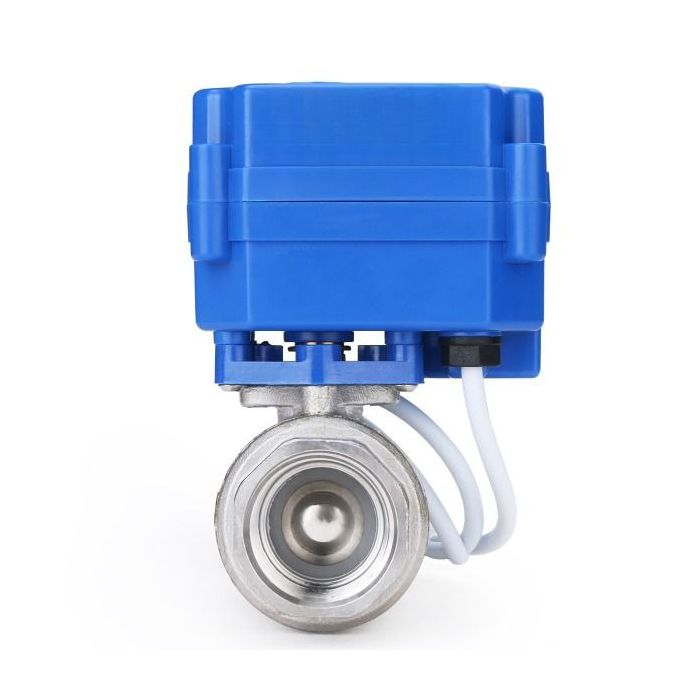

Stainless Steel Motorized Ball Valve - 3/4" Electrical Ball Valve with Standard Port, 85-265 V AC, Auto Return Feature

$54.99
In stock
SKU
JFMSV00041

Motorized ball valves play a crucial role in various applications. This stainless steel 3/4” model is designed to open and close in 6-8 seconds, staying in its new position without consuming any energy. Unlike many solenoid valves that remain energized continuously in a new position, motorized ball valves only use energy when transitioning from open to close or vice versa. These valves are commonly utilized in home automation systems, serving as emergency backups for water systems, and are popular among home brewers nationwide. Combining high-quality construction with affordability, motorized ball valves are a versatile choice for individual consumers.

Specifications:
Model: USS-MSV00041
Valve Material : SS304
Ball Seat: PTFE
Seal: EPDM
Operating Time : 6-8 Seconds
Working Voltage : 85-265 V AC
Max Power : 5 W
Max Torque : 6 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 100°C
Ambient Temperature Range : -5°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type: Standard
Thread Type : NPT
Wiring Type : 2 Wire Auto Return
