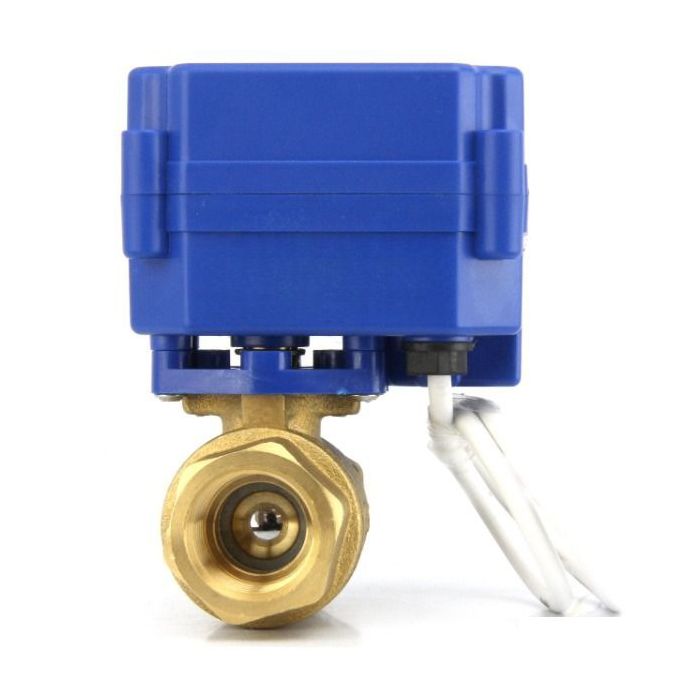

Electrically Controlled Brass Ball Valve - 3/4" Standard Port, 9-24V AC/DC, 3-Wire 1-Way Setup

$36.99
In stock
SKU
JFMSV00215

Versatile Power Options

The Motorized Electrical Ball Valve operates on a wide voltage range of 9V-24V AC/DC, making it adaptable to various power sources and ensuring reliable performance in diverse settings.

Efficient Operation

With a maximum power consumption of just 2W and a maximum torque of 2 N m, this valve offers a balance of power efficiency and performance. It's designed to operate smoothly and reliably, even in demanding conditions.

Quick Response Time

The valve boasts an impressive open/close time of less than 5 seconds, ensuring rapid response and efficient control in your fluid systems. This feature is particularly beneficial in applications where quick adjustments are crucial.

Robust and Durable

With an IP65 rating, the valve is dust-tight and protected against water jets, ensuring its durability and reliability in various environmental conditions. It can withstand a maximum pressure of 1.0 MPa, making it suitable for high-pressure applications.

Wide Temperature Range

The valve can handle a flow medium temperature range of 0°C to 90°C and an ambient temperature range of -5°C to 40°C. This makes it versatile for use in a variety of environments and applications, from heating systems to industrial processes.

Wiring Instructions

DC Wiring: In DC situations, the red wire is connected to the positive terminal, and the blue wire is connected to the negative terminal. The valve opens when the yellow wire is simultaneously connected to the positive terminal with the red wire, and the valve closes when the yellow wire is disconnected and the red wire is connected to the positive terminal alone.

AC Wiring: In AC situations, simply connect the red and blue wires to any two poles of the power source. When the yellow wire is connected in parallel with the red wire to one pole, the valve opens. Conversely, when the yellow wire is disconnected and only the red wire is connected to the pole, the valve closes.

Caution: This product may expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, please visit www.P65Warnings.ca.gov.

Specifications

  • Valve Material: Brass
  • Ball Seal: PTFE
  • Close/Open Time: <5 Seconds
  • Working Voltage: 9~24V AC/DC
  • Max Power: 2 W
  • Max Torque: 2 N m
  • Max Pressure: 1.0 MPa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000-100,000 Cycles
  • Bore Type: Standard
  • Thread Type: NPT
