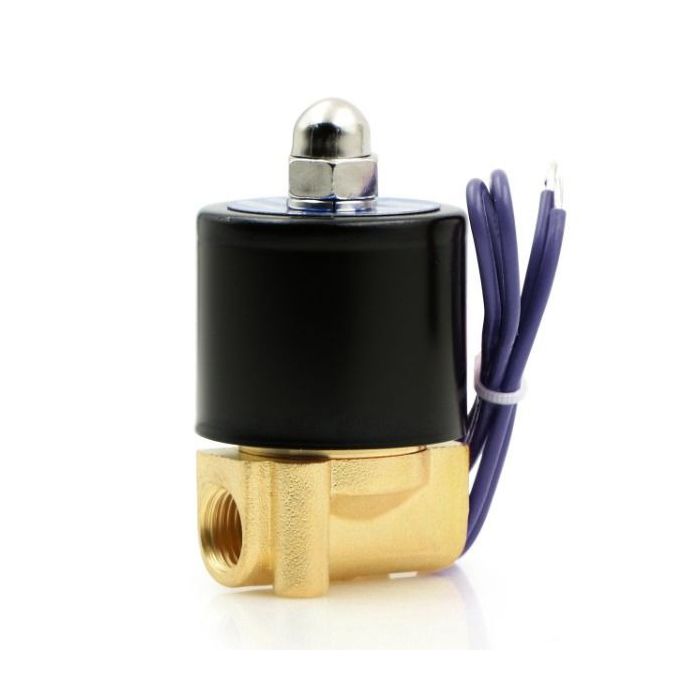

1/4" 12V DC Brass Body Solenoid Valve with VITON SEAL, Molex Micro-Fit 3.0 3-pin Connection

$12.00
In stock
SKU
JFSV00051-SPECIAL

Electric solenoid valve with normally closed (N/C) operation, featuring a durable brass body and two-way inlet and outlet ports with 1/4" female threaded (NPT) connections. Equipped with heat and oil resistant Viton seals, suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel. The IP65 rating ensures water resistance, though outdoor installation requires additional protective housing. Not suitable for underwater use.

Features:

  • Pipe Size: 1/4"
  • Flow Aperture: 2.5 mm
  • Body Material: Brass
  • Gasket / Diaphragm / Seal: VITON
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 12V ± 10%
  • Power rating: 14W
  • Suitable Media: Air, water, oil, Diesel fuel, kerosene etc.
  • Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
  • Flow capacity: 0.23 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 0.23 Cv
  • Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
  • Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)

Important Note: This solenoid valve is not designed for continuous operation as it may overheat. It is essential to follow the operational guidelines to prevent damage or malfunction. Additionally, this product contains chemicals including lead, known to the state of California to cause cancer and birth defects. For more information, visit www.P65Warnings.ca.gov.

Customers select this general-purpose valve for do-it-yourself projects, moderate temperature applications, water exchange in aquariums, air horns, or bleeding moisture from air tanks.
