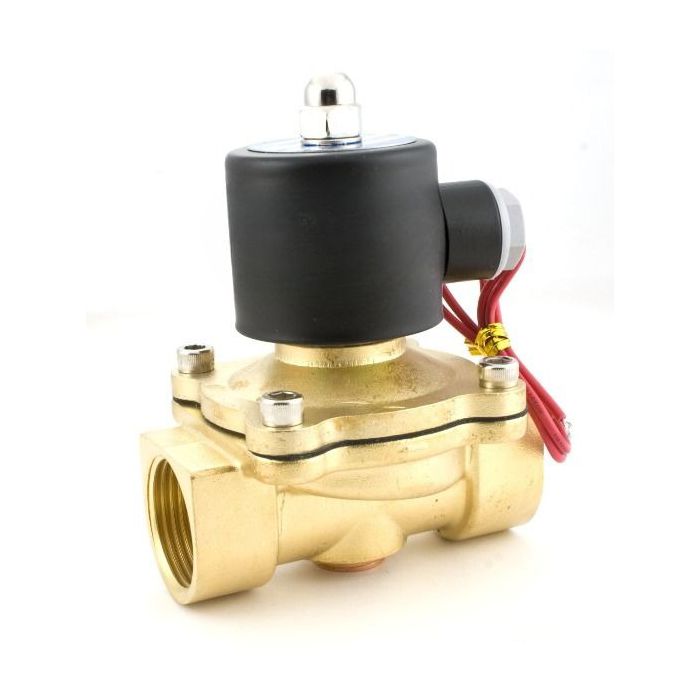

Brass Electric Solenoid Valve - 1-1/4" 12V DC, Normally Closed, VITON Seal

$79.95
In stock
SKU
JFSV00102

An electric solenoid valve with a normally closed (N/C) operation is crafted from high-quality brass material. It features two-way inlet and outlet ports with 1-1/4" female threaded (NPT) connections and a Viton gasket that is resistant to heat and oil.

Perfect for handling hot or cold water, gas, air, low viscosity fluids (< 20 cst), as well as oils and hydrocarbons like gasoline, kerosene, or diesel fuel.

The solenoid valves are rated IP65, making them capable of withstanding water spray. For outdoor permanent installation, it is recommended to protect the valves with a housing. Not suitable for underwater use.

Customers commonly select these valves for various applications such as DIY projects, moderate temperature uses, working with harsh chemicals, flow control in irrigation systems, reverse osmosis systems, or regulating propane gas flow.

Specifications

  • Pipe Size: 1-1/4" (1.25")
  • Flow Aperture: 35 mm
  • Body Material: Brass
  • Gasket / Diaphragm / Seal: Viton
  • Operation Type: Semi-Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 12V ± 10%
  • Power rating: 21.5 W
  • Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
  • Operational pressure range:
    • Air/Water/Diesel fuel/Kerosene: 0-7 Bar (0 to 101 PSI)
    • Oil: 0-5 Bar (0 to 72 PSI)
  • Flow capacity: 35 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 35 Cv
  • Temperature, Minimum: 14°F (-10°C)
  • Temperature Maximum: 248°F (120°C)

OVERHEATING WARNING: Not suitable for continuous operation as it is not a 100% duty cycle. While energized, the solenoid valve will become hot. The coil will reach up to about 176°F (80℃), which complies with national standards but may burn if energized continuously for over 8 hours.

WARNING: This product may expose you to chemicals including lead, a known carcinogen and reproductive harm-causing agent according to the State of California. For more information, visit www.P65Warnings.ca.gov.

Refer to the full Instruction Manual for detailed guidance.
