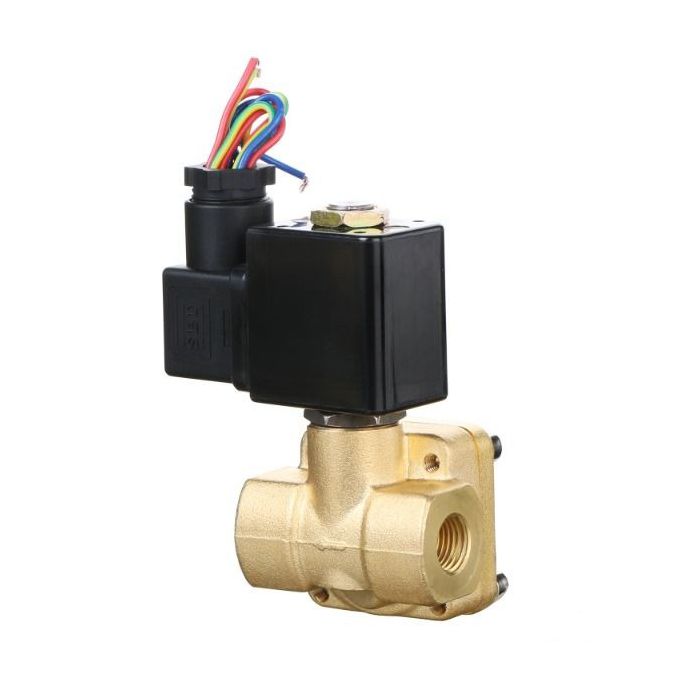

Electric Solenoid Valve- 1/4" 12V DC 230PSI Brass Body Normally Closed, VITON SEAL
High pressure solenoid valve with normally closed (N/C) operation is made of durable brass body with 1/4" female threaded (NPT) connections. Features heat and oil resistant Viton gasket and is suitable for use with hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel. This valve has an IP65 rating, making it resistant to water spray. For outdoor installation, it is recommended to enclose the valve in protective housing. Not suitable for underwater use.
Customers choose this general purpose valve for various applications including DIY projects, moderate temperature environments, harsh chemicals, flow control in irrigation and reverse osmosis systems, and regulating propane gas flow.
Specifications
- Model: USS2-00024
- Pipe Size: 1/4"
- Flow Aperture: 12 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: Viton
- Operation Type: Pilot-Operated Valve
- Operation Mode: Normally Closed
- Voltage: 12V DC ± 10%
- Power Rating: 12 W
- Suitable Medium: Air, water, oil, Diesel fuel, kerosene, etc.
- Minimum Medium Pressure: 10 PSI (0.07 MPa)
- Maximum Medium Pressure: 232 PSI (1.6 MPa)
- Flow Capacity: 1.5 gallons per minute (GPM) of water at 60°F with a pressure drop of 1 PSI
- Flow Value: 1.5 Cv
- Temperature, Minimum: 14°F (-10°C)
- Temperature, Maximum: 248°F (120°C)
OVERHEATING WARNING: Not suitable for continuous operation as it is not a 100% duty cycle. Under normal conditions, the solenoid valve may get hot, with the coil reaching a max temperature of about 176°F (80℃) which complies with national standards. Continuous energization for over 8 hours may lead to coil burnout.
