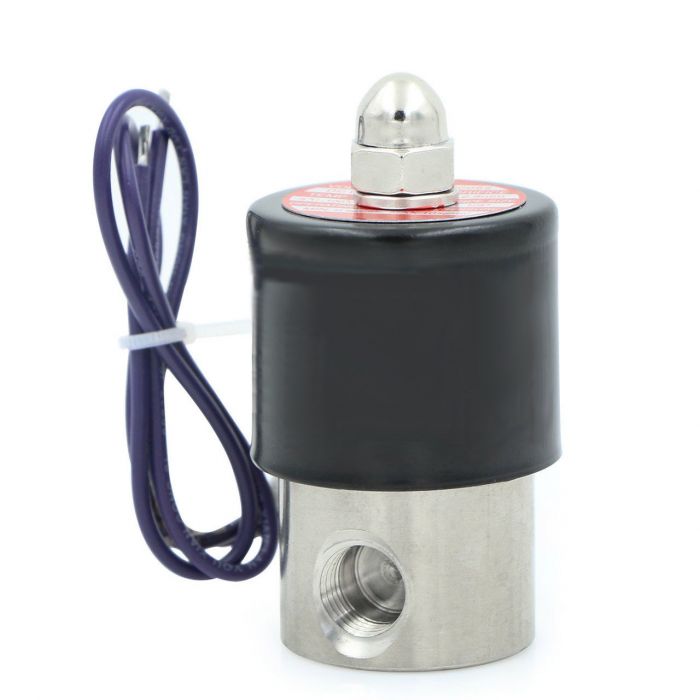

Electric Solenoid Valve- 1/4" 12V DC Stainless Steel Body Normally Closed with VITON SEAL

$28.99
In stock
SKU
JFSV00065

An electric solenoid valve with a durable stainless steel body, two-way inlet and outlet ports featuring 1/4" female threaded connections. It has heat and oil resistant Viton seals, making it suitable for hot or cold water, gas, air, low viscosity fluids, oils, and hydrocarbons like gasoline, kerosene, or diesel fuel.

The solenoid valves are IP65-rated, able to withstand water spray. For outdoor installation, it is recommended to enclose them in protective housing and not for underwater use. Customers favor this valve for various applications including DIY projects, moderate temperature uses, aquarium water exchange, air horn, and air tank moisture bleed.

Specifications:

  • Pipe Size: 1/4"
  • Flow Aperture: 2.5 mm
  • Body Material: Stainless Steel
  • Gasket / Diaphragm / Seal: VITON
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: DC 12V ± 10%
  • Power rating: 14W
  • Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
  • Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
  • Flow capacity: 0.23 GPM of water at 60°F with a pressure drop of 1 PSI
  • Flow value: 0.23 Cv
  • Temperature, Minimum: 14°F (-10°C)
  • Temperature Maximum: 248°F (120°C)

Additionally, a version with a brass body is available as Item #USS2-00051.

WARNING: This solenoid valve is not intended for continuous operation (not a 100% duty cycle). During normal operation, the coil may reach temperatures up to 176°F (80°C), complying with national standards. Prolonged energization exceeding 8 hours may lead to coil burnout.
