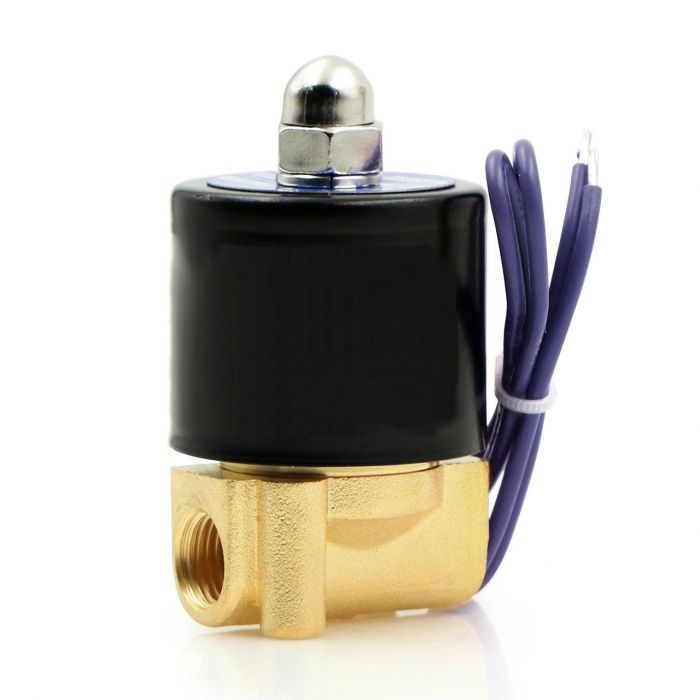

Electric Solenoid Valve- 1/4" 12V DC Brass Body Normally Closed, VITON SEAL
High-quality normally closed (N/C) electric solenoid valve made of durable brass, featuring two-way inlet and outlet ports with one-quarter inch (1/4") female threaded (NPT) connections, and Viton seals that are resistant to heat and oil. This solenoid valve is suitable for a variety of applications including hot or cold water, gas, air, low viscosity fluids (< 20 cst), oils, and hydrocarbons such as gasoline, kerosene, or diesel fuel. The IP65 rating ensures the valve can withstand water spray, but it is recommended to enclose the valves in protective housing if permanently installed outdoors. Not suitable for underwater use. Customers appreciate this valve for various purposes, including DIY projects, moderate temperature applications, aquarium water exchange, air horn, or draining moisture from an air tank.
Specifications
- Pipe Size: 1/4"
- Flow Aperture: 2.5 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Voltage: DC 12V ± 10%
- Power rating: 14W
- Suitable Media: Air, water, oil, Diesel fuel, kerosene, etc.
- Operational pressure range: Air/Water/Diesel fuel/kerosene: 0-7 Bar (0 to 101 PSI); Oil: 0-5 Bar(0 to 72 PSI)
- Flow capacity: 0.23 gallons per minute (GPM) of water at 60 °F with a pressure drop of 1 PSI
- Flow value: 0.23 Cv
- Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
- Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
- Also available with Stainless Steel body: Item #SV003001
Overheating Warning: This solenoid valve is not designed for continuous operation and cannot be used at a 100% duty cycle. During normal operation, the solenoid valve will become hot. The coil temperature may reach up to about 176°F (80℃), which complies with national standards. Continuous energization for more than 8 hours may cause the coil to burn.
WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.
Instruction Manual
```
