1" Brass Electric Solenoid Valve Underwater Valve 110V AC Normally Closed VITON for Air Water Oil Fuel IP67

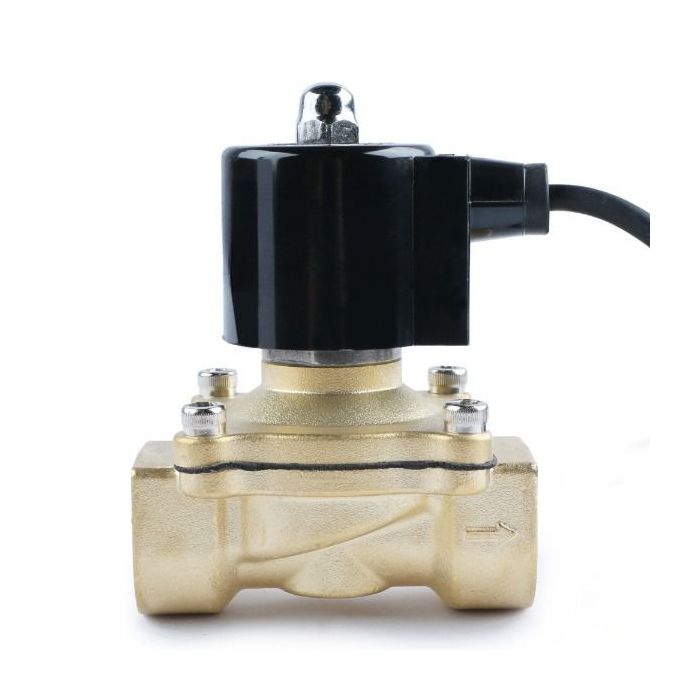

Our normally closed (N/C) electric solenoid valve is built with a durable brass body, 1" female threaded (NPT) connections, and a strong VITON gasket. This valve is suitable for a wide range of applications including hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst), and gasoline or other petroleum-based liquids. Customers have chosen this general purpose valve for various uses such as supplemental gas tanks, sprinkler systems, and more. Additionally, our underwater solenoid valve is specially designed for diving work. The coil is sealed with epoxide resin, providing better waterproof performance compared to standard solenoid valves. It is particularly suitable for water control in fountains.
Specifications
- Model: NSV00008
- Size: 1"
- Flow Aperture: 25 mm
- Body Material: Brass
- Gasket / Diaphragm / Seal: VITON
- Rated voltage: AC 110 V, ±10%
- Current: 0.2 A
- Power rating: 22 VA
- Operation Type: Direct Lift Valve
- Operation Mode: Normally Closed
- Level of protection: IP67
- Operational pressure range: 0 to 116 PSI / 0-0.8 MPa (for Air, Water); 0 to 72 PSI / 0-0.5 MPa (for Oil)
- Medium temperature range: -10℃ - 120℃ (-14℉ - 248℉)
- Ambient temperature: -10℃- 50℃
- Flow capacity: 12 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI
- Flow value: 12 Cv
- Length of cable: 1 m
- Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc.
- Cannot be used in strong acid, strong base, waste water, industrial gas, and other media containing many impurities.
Important Warnings
Overheating Warning: While energized under normal operating conditions, the solenoid valve will become hot. The coil will reach a maximum temperature of about 80℃. It fully complies with national standards: JB/T7352-2010. Continuous energization for no more than 24 hours at a time is recommended.
CA PROP65 Warning: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. It is not allowed by federal law to be installed for potable water use in the U.S.A. and its territories.
```
