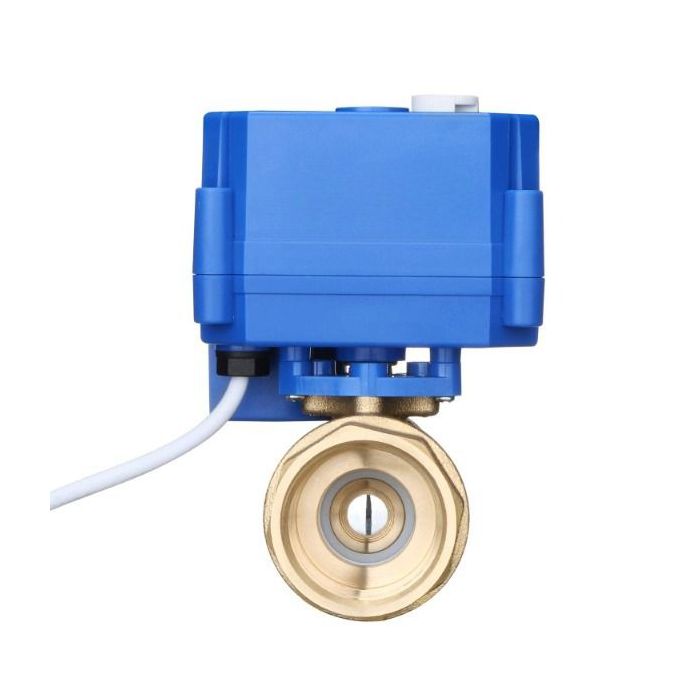

1" Brass Motorized Ball Valve with Manual Function, Standard Port, 9-24V AC/DC and 2 Wire Auto Return Setup

$23.70
In stock
SKU
JFMSV00037

The motorized ball valve with automatic return is a convenient solution for home DIY enthusiasts. Constructed with brass, this valve operates with 9V to 24V of DC or AC power. It features a Normally Closed automatic return function, opening in 6-8 seconds upon energization. The valve is designed with limit switches to minimize energy consumption once opened and will automatically return to a closed position in case of power loss. Unlike traditional solenoid valves, this valve maintains a low energy intake even when fully open, preventing overheating. The auto return feature is crucial for water system applications to prevent leaks during power outages. With an IP65 rating, the valve is protected against dust and water spray, ensuring safe and reliable performance. The Position Indicator allows for easy monitoring of the valve's status, while the manual function enables manual adjustment and operation when needed.

Specifications:
Valve Material: Brass
Ball Seal: PTFE
lose/Open Time: 6~8 Seconds
Working Voltage: 9-24V AC/DC
Max Power: 5 W
Max Torque: 2.5 N m
Max Pressure: 1.0 MPa
Temperature range for flow medium: 0°C to 100°C
Ambient Temperature Range: -5°C to 40°C
Enclosure Rating: IP65
Life Expectancy: 80,000-100,000 Cycles
Bore Type: Standard Port
Thread Type: NPT
