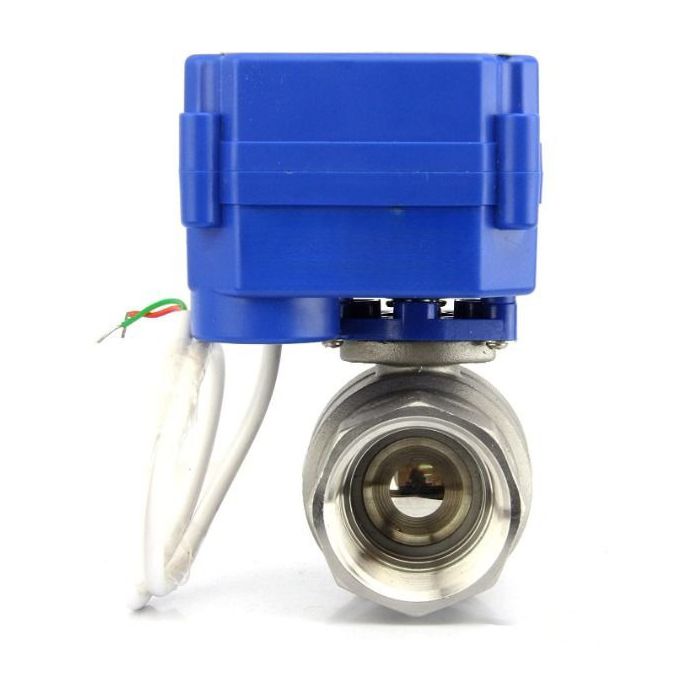

Motorized 1" Stainless Steel Electrical Ball Valve with Standard Port, 85-265 V AC, 2 Wire Auto Return

Motorized ball valves play a crucial role in various applications. This stainless steel 1” model can open and close in 6-8 seconds, maintaining its new position without consuming any energy. This sets motorized ball valves apart from many solenoid valves since solenoid valves are typically continuously energized when in a new position. Unlike solenoid valves, motorized ball valves only use energy when transitioning between open and closed states. These valves are widely used in home automation systems and can serve as backup systems for water supply. Home brewers particularly favor motorized ball valves. The motorized ball valves we offer ensure top-notch quality at a reasonable price point for individual buyers.

Specifications:
U.S. Solid Model: USS-MSV00055
Valve Material : SS304
Ball Seat: PTFE
Seal: EPDM
Operating Time : 6-8 Seconds
Working Voltage : 85-265 V AC
Max Power : 5 W
Max Torque : 6 N m
Max Medium Pressure : 1.0 Mpa
Temperature Range for Flow Medium : 0°C to 100°C
Ambient Temperature Range : -5°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type: Standard
Thread Type : NPT
Wiring Type : 2 Wire Auto Return
