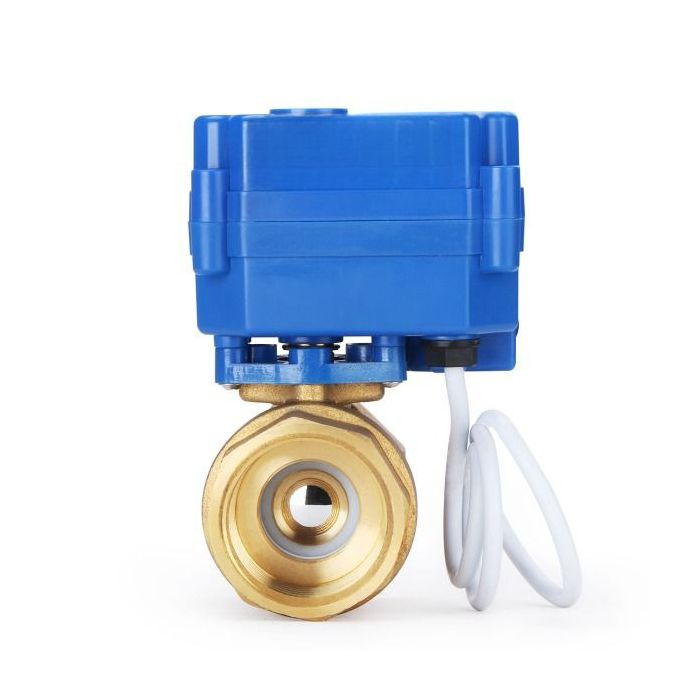

Motorized Ball Valve- 1" Brass Electrical Ball Valve with Standard Port, 9-24 V AC/DC, 2 Wire Auto Return, Normally Open
Motorized ball valves play a crucial role in various applications. This particular model is designed to open and close within 3-5 seconds, requiring minimal energy to maintain its position. This sets motorized ball valves apart from many solenoid valves, as most solenoid valves remain energized continuously when in a new position, whereas motorized ball valves only consume energy during the opening or closing process. The 2 wire auto return feature of this model is ideal for scenarios where the valve needs to open in the event of a power loss. By energizing the valve to close and leaving it connected, only negligible energy is used once the valve is fully closed. To open the valve, simply deactivate the power supply. This valve offers convenience as it can be operated using a simple on/off switch. When powered, it stays closed, and when powered off or in case of power loss, it automatically opens.
Specifications:
- Valve Material: Brass
- Ball Seal: PTFE
- Operating Time: 3-5 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2 N m
- Max Medium Pressure: 1.0 Mpa
- Temperature Range for Flow Medium: 0°C to 90°C
- Ambient Temperature Range: -10°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000 to 100,000 Cycles
- Bore Type: Standard
- Thread Type: NPT
- Wiring Type: 2 Wire Auto Return
