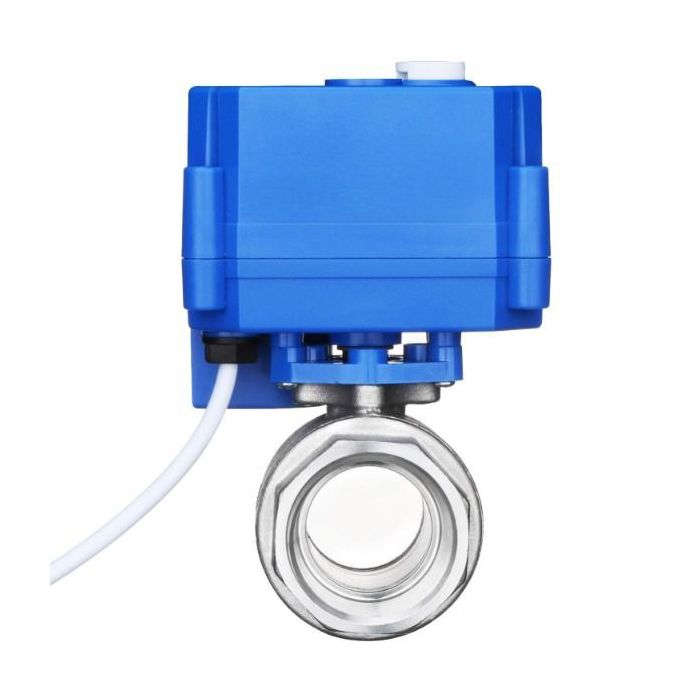

Electric Ball Valve - 1" Stainless Steel Motorized Ball Valve with Manual Control, Full Port, 9-24V AC/DC and 3 Wire Installation.

$67.99
In stock
SKU
JFMSV00204

Versatile Power Options: Motorized Electrical Ball Valve

The Motorized Electrical Ball Valve operates on a wide voltage range of 9V-24V AC/DC, making it adaptable to various power sources and ensuring reliable performance in diverse settings.

Efficient Operation

With a maximum power consumption of just 2W and a maximum torque of 2.5 Nm, this valve offers a balance of power efficiency and performance. It's designed to operate smoothly and reliably, even in demanding conditions.

Quick Response Time

The valve boasts an impressive open/close time of less than 8 seconds, ensuring rapid response and efficient control in your fluid systems. This feature is particularly beneficial in applications where quick adjustments are crucial.

Robust and Durable

With an IP65 rating, the valve is dust-tight and protected against water jets, ensuring its durability and reliability in various environmental conditions. It can withstand a maximum pressure of 1.0 MPa, making it suitable for high-pressure applications.

Wide Temperature Range

The valve can handle a flow medium temperature range of 0°C to 90°C (194°F), and an ambient temperature range of -5°C to 40°C (-41°F to 104°F). This makes it versatile for use in a variety of environments and applications, from heating systems to industrial processes.

Position Indicator and Manual Function

The Position Indicator on the top of actuator can help you see the on/off state of the valve. The valve also comes with manual function for adjustments when needed.

Wiring Instructions

In DC situations, connect the red wire to the positive terminal, the blue wire to the negative terminal, and control the valve using the yellow wire. In AC situations, connect the red and blue wires to any two poles of the power source for operating the valve.

Specifications

  • Valve Material: Stainless Steel
  • Ball Seal: PTFE
  • Close/Open Time: < 8 Seconds
  • Working Voltage: 9~24V AC/DC
  • Max Power: 2 W
  • Max Torque: 2.5 Nm
  • Max Pressure: 1.0 MPa
  • Temperature range for flow medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000-100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
