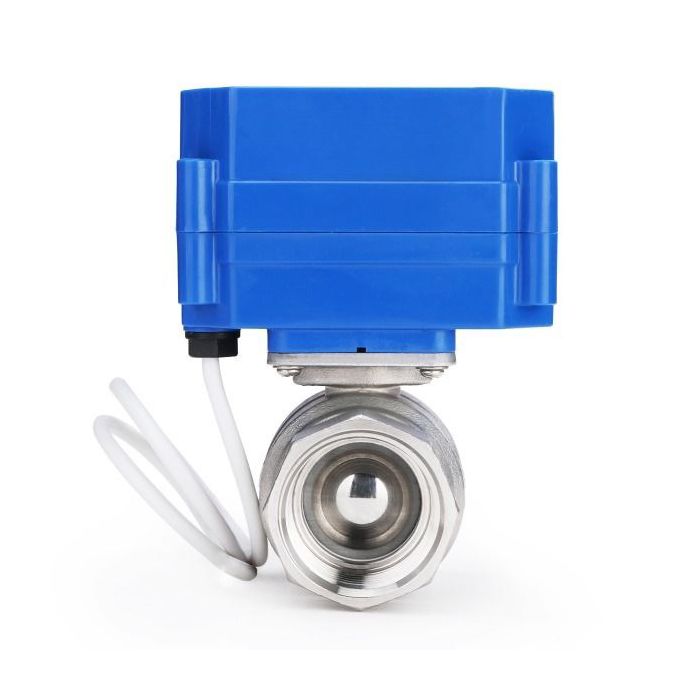

Stainless Steel 1" Motorized Electrical Ball Valve with Full Port, 9-24 V AC/DC, 2-Wire Auto Return, Normally Open

$27.65
In stock
SKU
JFMSV00073

Motorized ball valves are essential in various applications. This particular model operates with a quick opening and closing time of 3-5 seconds, conserving energy by staying put in its new position. Unlike solenoid valves that typically require continuous energy in a new position, motorized ball valves only consume energy during the opening or closing process. The 2-wire auto return design is especially useful for scenarios where the valve must open during power loss. By energizing the valve to close and maintaining minimal energy consumption once completely closed, this stainless steel ball valve is both efficient and convenient. It can be easily controlled with a simple on/off switch, staying closed when activated and automatically opening when power is cut off. Additionally, this valve is NSF certified for installation in drinking water pipelines.

Specifications:

  • Valve Material: SS304
  • Ball Seal: PTFE
  • Operating Time: 3-5 Seconds
  • Working Voltage: 9-24V AC/DC
  • Max Power: 5 W
  • Max Torque: 6 N m
  • Max Medium Pressure: 1.0 Mpa
  • Temperature Range for Flow Medium: 0°C to 90°C
  • Ambient Temperature Range: -5°C to 40°C
  • Enclosure Rating: IP65
  • Life Expectancy: 80,000 to 100,000 Cycles
  • Bore Type: Full
  • Thread Type: NPT
  • Wiring Type: 2 Wire Auto Return
