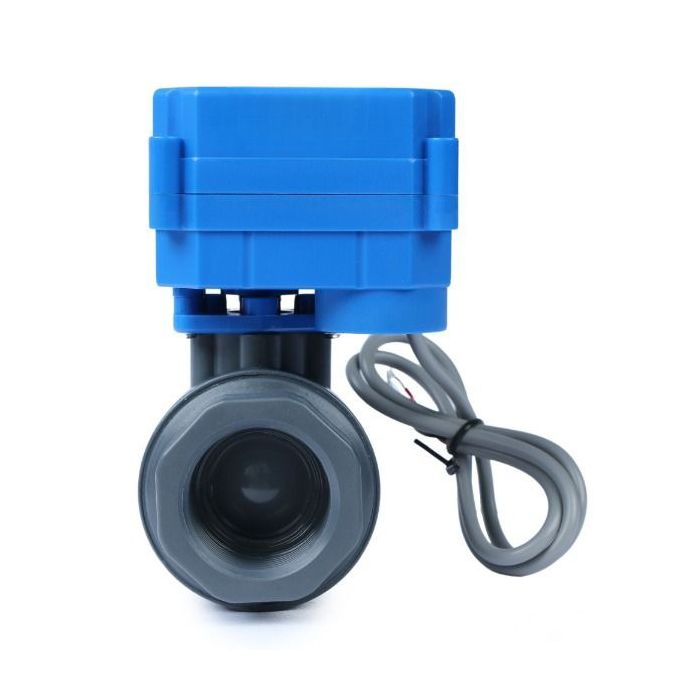

1" Electrically Operated UPVC Ball Valve - 9-36V AC/DC Plastic Motorized Electrical Valve with Full Port, 2-Wire Auto Return Function, Normally Closed
The motorized ball valve features a sturdy UPVC valve body renowned for its exceptional durability and longevity, outperforming PVC alternatives. The UPVC construction not only ensures lasting performance but also results in a lighter valve compared to brass or stainless steel bodies, enhancing ease of installation on diverse pipelines. Additionally, the lead-free body of the valve renders it suitable for use in drinking water pipelines, providing a safe and practical solution for such applications.
The 2-wire auto-return model is an excellent option for situations requiring the valve to close in case of a power outage. This model offers straightforward operation by energizing to open and staying connected, consuming minimal energy once fully opened. To close the valve, simply disconnect the power supply. This user-friendly design allows for operation with a basic on/off switch—when switched on, the valve remains open, and when switched off, it automatically closes.
Specifications:
Model: MSV00093
Size: 1 inch
Material: UPVC
Thread Type: NPT
N.C./N.O.: Normally Closed
Input Voltage: 9-36V AC/DC
Wiring Type: 2-Wire Auto Return
Max Pressure: 1.0 Mpa
Ambient Temperature: 33℉-122℉
Medium Temperature: 33℉-131℉
