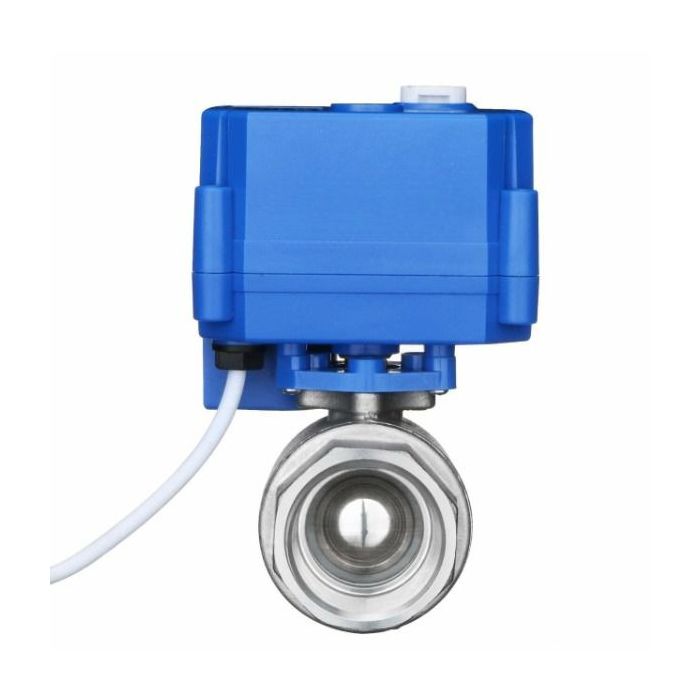

1" Stainless Steel Motorized Ball Valve with Manual Function, Full Port, 9-24V AC/DC and 2 Wire Auto Return Setup
Motorized Ball Valve in Stainless Steel with Automatic Return
The 1'' motorized ball valve in stainless steel with automatic return is designed with quality materials to meet the needs of many home tinkerers. Crafted with SS304 stainless steel, the valve body and stem ensure safety for drinking water applications, making it ideal for water systems. The valve activates with 9V to 24V of DC or AC power, and its automatic return feature ensures a closed position when not energized.
Unlike traditional solenoid valves, this motorized ball valve minimizes energy consumption even when fully open, preventing overheating issues. The quick 6-8 second response time upon energization, along with built-in limit switches, offers efficient and safe operation. In the event of a power outage, the valve will automatically return to its closed state, preventing leaks and flooding.
Featuring an IP65 rating, this valve is equipped to withstand dust and water exposure from any direction, maintaining its functionality and longevity. The Position Indicator on the actuator helps to easily identify the valve's status, while the included manual function allows for manual adjustments and operation when needed.
Specifications
- Valve Material: SS304
- Ball Seal: PTFE
- Close/Open Time: 6~8 Seconds
- Working Voltage: 9-24V AC/DC
- Max Power: 5 W
- Max Torque: 2.5 N m
- Max Pressure: 1.0 MPa
- Temperature Range for Flow Medium: 0°C to 100°C
- Ambient Temperature Range: -5°C to 40°C
- Enclosure Rating: IP65
- Life Expectancy: 80,000-100,000 Cycles
- Bore Type: Full
- Thread Type: NPT
For detailed instructions, refer to the provided Instruction Manual.
