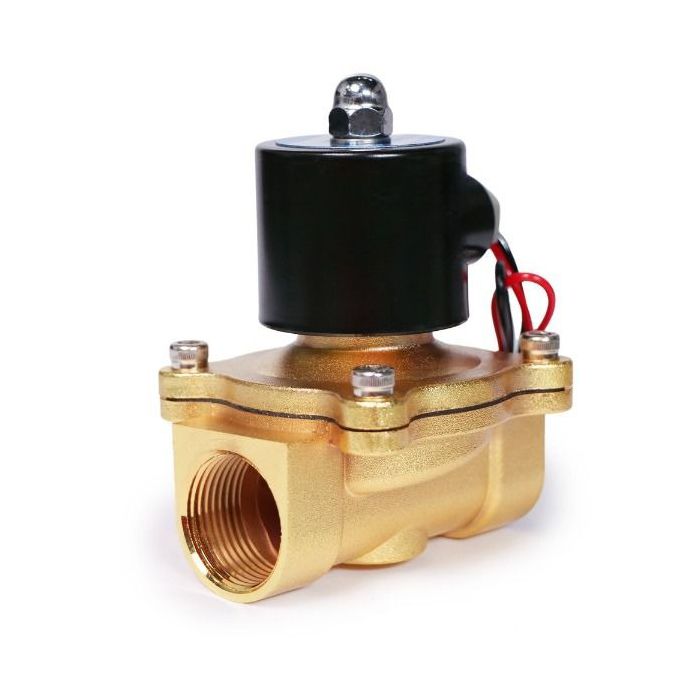

1" Zinc Alloy 12V DC Solenoid Valve with NBR Seal

$33.99
In stock
SKU
JFZSV00003
Zinc-alloy Solenoid Valves

Top-quality Zinc-alloy Solenoid Valves

At our company, we utilize the latest technologies to produce premium valves at competitive prices. The USS-ZSV Series Zinc-alloy Solenoid Valves are designed to enhance the efficiency of your applications.

Key Features:

  • Zinc alloy valve body for cost-effective pressure resistance
  • Specifications:
    • Pipe Size: 1"
    • Flow Aperture: 25 mm
    • Body Material: Zinc Alloy
    • Gasket / Diaphragm / Seal: NBR
    • Operation Type: Direct Lift Valve
    • Operation Mode: Normally Closed
    • Voltage: DC 12V
    • Power rating: 20 W
    • Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
    • Operational pressure range:
      • Air/Water: 0-8 Bar (0 to 116 PSI)
      • Oil: 0-5 Bar (0 to 72 PSI)
    • Flow value: 12.0 Cv
    • Temperature Range:
      • Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
      • Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

OVERHEATING WARNING: Not intended for continuous operation as it is not a 100% duty cycle. During normal operation, the solenoid valve can get hot with the coil reaching temperatures up to about 176°F (80℃), meeting the national standard: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.
