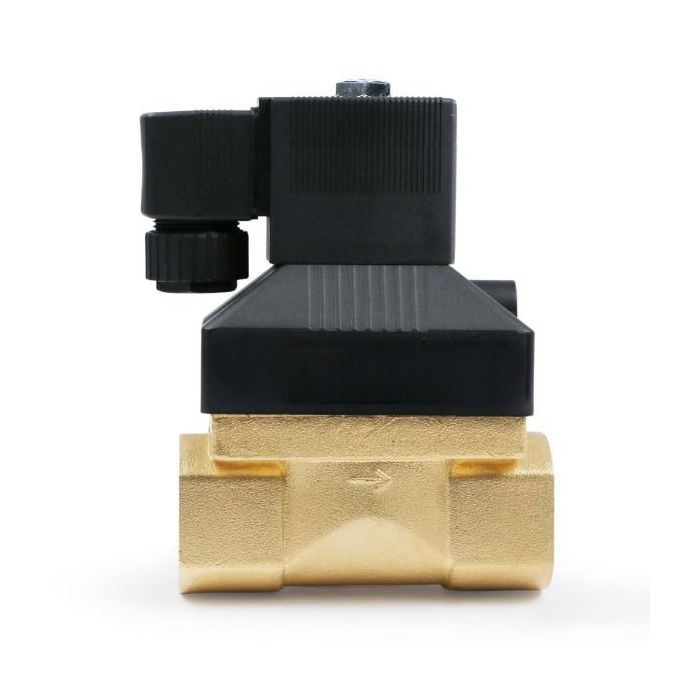

High Pressure Solenoid Valve - 1" 12V DC Brass 50 bar, 300 ℉ High-Pressure High-Temperature Valve
High Pressure Solenoid Valve
The high pressure solenoid valve boasts a sturdy design that can withstand high pressures and temperatures, making it ideal for transferring liquids, gas, oil, or air at pressures of up to 50bar. Crafted from high-quality brass with a PTFE seal, this valve ensures durability and efficiency.
Capable of functioning flawlessly in high-pressure systems, this valve also offers excellent temperature resistance of up to 300 degrees F. Its versatility and responsiveness make it suitable for various HVAC, industrial, household, or commercial applications.
Specifications:
- Model: HSV04
- Size: 1 inch
- Material: Brass
- Working Voltage: 12V DC
- Output Power: 16 W
- N.C./N.O.: Normally Closed
- Working Pressure: < 5.0 MPa
- Medium Temperature: -5-150°C (23-302℉)
- Orifice: 25 mm
- Flow Rate: 11.67 Cv
- Seal: PTFE
- Operation Type: Pilot-operated
- Open/Close Time: < 1 s
