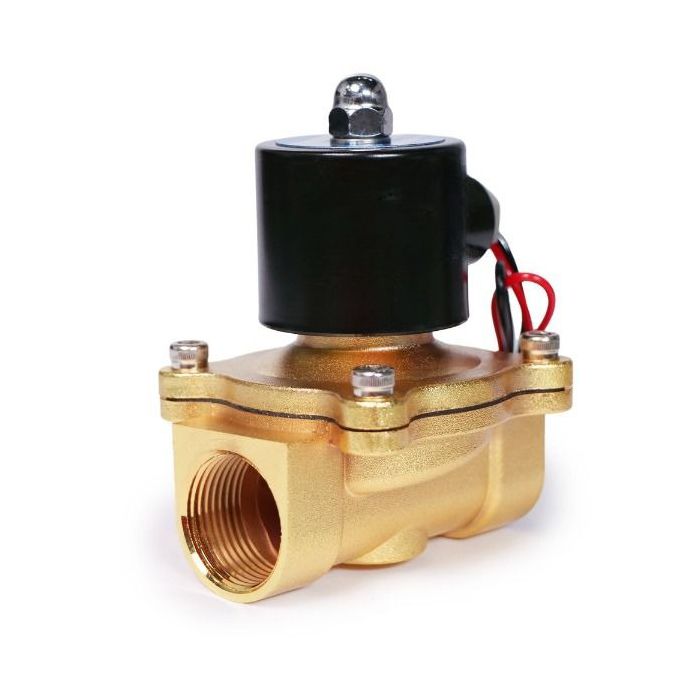

1" Zinc-Alloy 24V AC Solenoid Valve with NBR Seal

$33.99
In stock
SKU
JFZSV00015

Discover the latest technology-driven solutions for high-quality valves at competitive prices. Our Zinc-alloy Solenoid Valves from the ZSV Series are designed to enhance performance in various applications.

  • Pipe Size: 1"
  • Flow Aperture: 25 mm
  • Body Material: Zinc Alloy
  • Gasket / Diaphragm / Seal: NBR
  • Operation Type: Direct Lift Valve
  • Operation Mode: Normally Closed
  • Voltage: AC 24V
  • Power Rating: 22 VA
  • Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
  • Operational Pressure Range:
    • Air/Water: 0-8 Bar (0 to 116 PSI)
    • Oil: 0-5 Bar (0 to 72 PSI)
  • Flow Value: 12 Cv
  • Temperature Minimum: 14°F (-10°C)
  • Temperature Maximum: 176°F (80°C)

OVERHEATING WARNING: These solenoid valves are not intended for continuous operation (not a 100% duty cycle). Under normal operating conditions, the valve may get hot while energized, with the coil reaching a maximum temperature of about 176°F (80°C), complying with national standard JB/T7352-2010. Continuous energization for more than 8 hours may result in coil damage.
