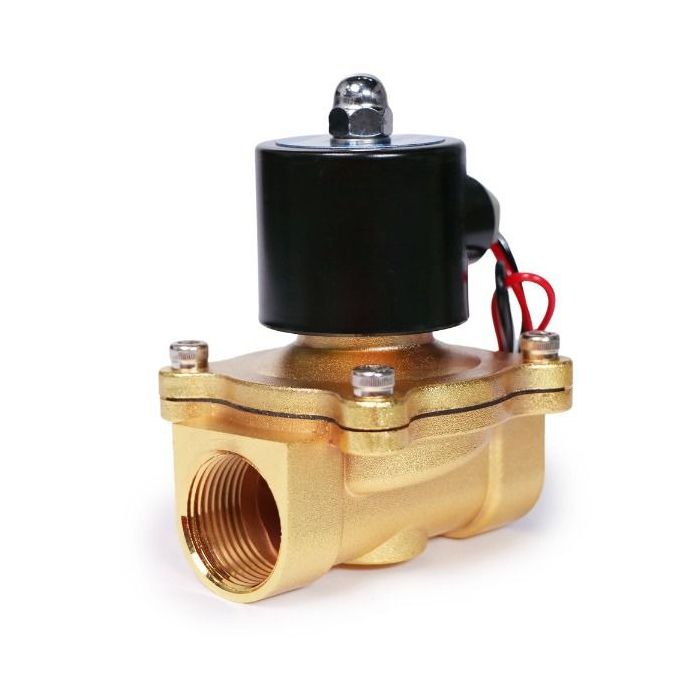

High-Quality 1" Zinc-Alloy 24V DC Solenoid Valve with NBR Seal

Our latest technologies help us produce top-quality valves at a reasonable price. The Zinc-alloy Solenoid Valves from our ZSV Series are designed to be an excellent tool for various applications.

The solenoid valves in the ZSV series feature a zinc alloy valve body, providing cost savings without compromising on pressure resistance compared to brass or stainless steel bodies.

Specifications:

• Pipe Size: 1"
• Flow Aperture: 25 mm
• Body Material: Zinc Alloy
• Gasket / Diaphragm / Seal: NBR
• Operation Type: Direct Lift Valve
• Operation Mode: Normally Closed
• Voltage: DC 24V
• Power Rating: 20 W
• Suitable Media: Water, oil, Diesel fuel, kerosene, etc.
• Operational Pressure Range:
  • Air/Water: 0-8 Bar (0 to 116 PSI)
  • Oil: 0-5 Bar(0 to 72 PSI)
• Flow Value: 12.0 Cv
• Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
• Temperature Maximum: 176 degrees Fahrenheit (80 degrees Celsius)

Overheating Warning: These solenoid valves are not designed for continuous operation (not a 100% duty cycle). During normal operation, the valve may get hot, with the coil reaching a maximum temperature of about 176°F (80℃), in full compliance with national standard: JB/T7352-2010. Continuous energization for more than 8 hours may cause the coil to burn.
