15 KW High Frequency Induction Heater 30-80 KHz, 16:2 Turns Ratio, 220V or 110V

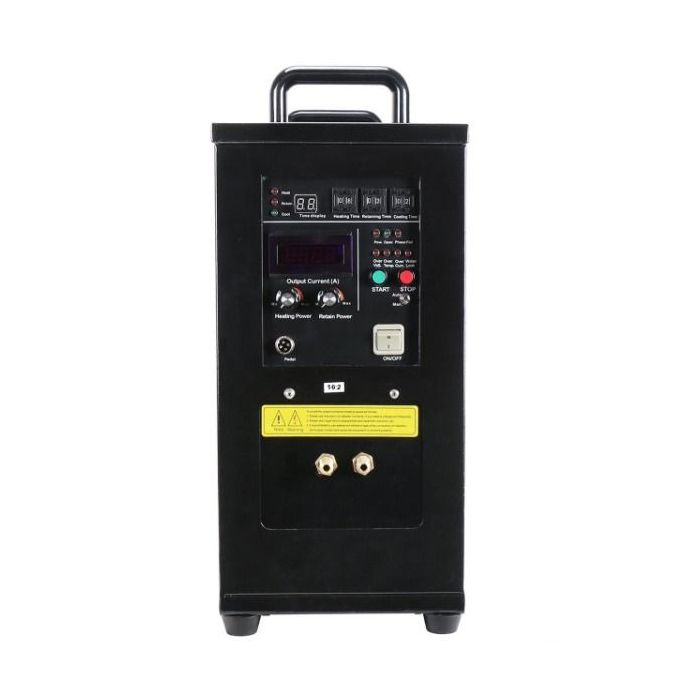

High-Frequency Induction Heater

When it comes to inductive heating, the High-Frequency Induction Heater is among the best. It adopts the latest MOSFET and IGBT power units and the latest frequency control methods and techniques, providing high efficiency, low energy consumption, and very high output power. This induction heater achieves efficient and quick heating of any targeted area, particularly useful for heating metals. With a 100% load design, it can operate non-stop for 24 hours. In case of overheating, an infrared temperature detector alerts the operator and facilitates easier temperature control and manual operation.

Specifications:

• Input Voltage: Single Phase; 220V or 110V
• Max. Inductive Power: 15 KW
• Max. Input Power: 7 KW
• Fluctuating Frequency: 30-80 KHz
• Output Current: 200-600 A
• Max. Heating Temperature: 1200℃ (2192℉)
• Time Settings: 01 to 99 seconds
• Water Temperature Protection Point: 40℃ (104℉)
• Flow Rate of Cooling Water: ≥ 7.5 L/min
• Min. Water Pressure: 0.3 MPa
• Head of Cooling Water: ≥ 30 m (98 ft)
• Min. Wire Gauge: 9 gauge
• Net Weight: 25 kg (55 lbs)
• Product Dimensions: 22" x 9" x 19"
• Turns Ratio: 16:2
• Circuit Breaker: ≥ 40 A

Applications:

1. Brazing: Hybrid welding of different materials with workpiece dimensions less than 1.2" x 1.2" x 1.2".
2. Diathermy: Suitable for workpieces with a diameter less than 5 mm (3/16").
3. Sealing: Can seal and cap different machines with attention to metal types.
4. Hardening: Heat-treat various metals for hardening, usually requiring quenching post-heating.
5. Annealing: Soften heat-treated metals, results may vary based on metal type.
6. Soldering: Similar to brazing, clean surfaces before use with fast-melting solder.
7. Smelting: Capable of smelting metals like copper, silver, and gold.

Packing List:

• 1 x Induction Heater
• 1 x Foot pedal
• 3 x Fuse
• 4 x Clamps (stainless steel)
• 2 x Tubing (copper) to connect your coil (each about 0.5 ft long)
• 1 x Tubing (copper) to create your coil (about 5 ft long)
• 1 x Coil (copper, about 3.3 ft long)
• 1 x Hose (rubber, about 32 ft long, 3/4" diameter)

Notes:

• A heating coil with diameter 30 mm and a 1.5 m M6 copper tube will be included for free. For additional heating coils or custom dimensions, contact us at service@ussolid.com with your order number and coil specifications.
• This machine requires direct connection to a power source without using a plug (power line cross-sectional area must be larger than 6 square millimeters).
• Maintain a water temperature of at least 26℃ to prevent condensation on water pipes.
