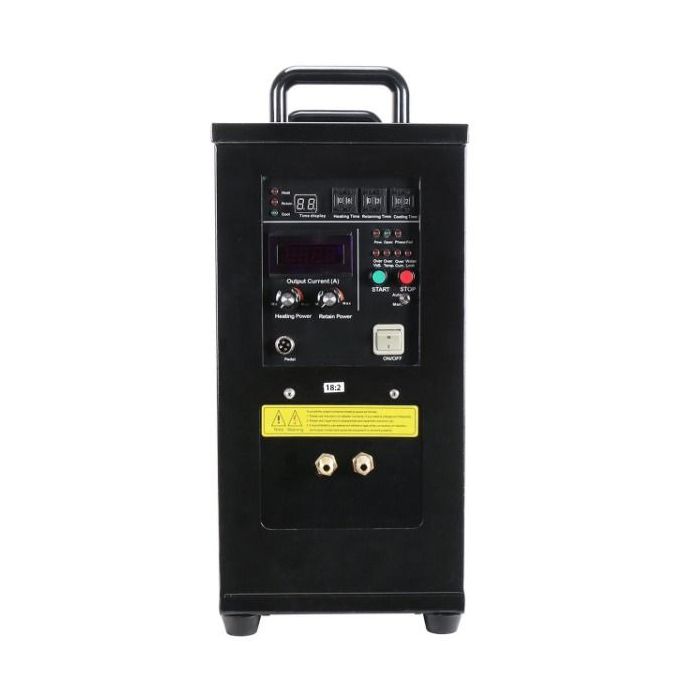

25 KW High Frequency Induction Heater 30-80 KHz, 18:2 Turns Ratio, Three Phase 480 V
$2,499.99
In stock
SKU
JFHFIH00012-480V
High-Frequency Induction Heater
When it comes to inductive heating, the High-Frequency Induction Heater is among the best. It adopts the latest MOSFET and IGBT power units and the latest frequency control methods and techniques, providing high efficiency, low energy consumption, and very high output power. This allows for efficient and quick heating of any targeted area, making it highly useful for heating metals. The heater has a 100% load design, enabling it to work continuously for 24 hours. An infrared temperature detector alerts the operator in case of overheating, simplifying manual operation and temperature control.
Specifications:
- Input Voltage: Three Phase; 480V
- Max. Inductive Power: 25KW
- Max. Input Power: 16KW
- Fluctuating Frequency: 30-80KHz
- Output Current: 200-1400A
- Max. Heating Temperature: 1200℃ (2192℉)
- Time Settings: 01 to 99 seconds
- Water Temperature Protection Point: 40℃ (104℉)
- Flow Rate of Cooling Water: ≥ 7.5 L/min
- Min. Water Pressure: 0.3 MPa
- Head of Cooling Water: ≥ 30m (98ft)
- Min. Wire Gauge: 9 gauge
- Net Weight: 25kg (55lbs)
- Product Dimensions: 22" x 9" x 19"
- Turns Ratio: 18:2
- Circuit Breaker: ≥ 30A
Applications:
- Brazing: Hybrid welding of different materials.
- Diathermy: Suitable for workpieces with a diameter less than 5mm.
- Sealing: Ideal for sealing and capping various machines.
- Hardening: Heat-treating metals for hardening.
- Annealing: Softening heat-treated metals.
- Soldering: Joining surfaces with solder.
- Smelting: Melting metals like copper, silver, and gold.
Packing List:
- 1 x Induction Heater
- 1 x Foot pedal
- 3 x Fuse
- 4 x Clamps (stainless steel)
- 2 x Tubing (copper) to connect your own coil, each about 0.5ft long
- 1 x Tubing (copper) to create your own coil, about 5ft long
- 1 x Coil (copper), about 3.3ft long
- 1 x Hose (rubber), about 32ft long, 3/4" diameter
Notes:
- A heating coil with diameter 30mm and a 1.5m M6 copper tube will be included for free. Contact us for additional heating coils or dimensions.
- This machine requires a wire for direct power connection (cross-sectional area of power line must be larger than 6 square millimeters).
- The water temperature must not be lower than 26℃ to prevent condensation.
Models:
Model | Max. Inductive Power | Max. Input Power | Output Current | Turns Ratio | Description |
---|---|---|---|---|---|
USS-HFIH00001 | 15KW | 7KW | 200-600A | 16:1 | The length of the coil that can be heated is about 1 meter, suitable for small metal parts. |
USS-HFIH00011 | 25KW | 16KW | 200-1400A | 16:2 | Can be used with water cooler for larger workpieces. |
USS-HFIH00003 | 6KW | 6KW | 5-30A | 18:1 | Heating workpieces with an outer diameter less than 12mm or for quenching purposes. |
USS-HFIH00010 | N/A | N/A | N/A | 18:2 | Description not available. |
