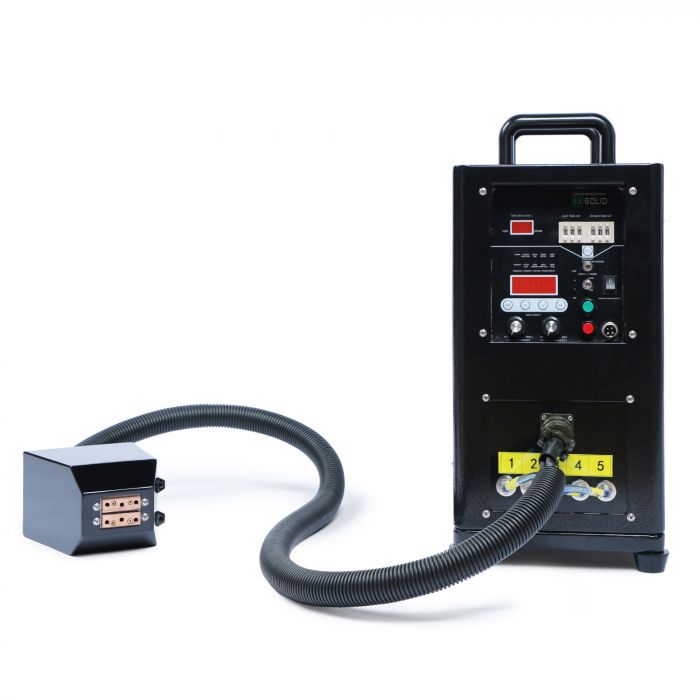

6KW Ultra High Frequency Induction Heater 500-2200 KHz 180-245V

$4,299.99
In stock
SKU
JFHFIH00010-220V

When it comes to inductive heating, the Ultra High-Frequency Induction Heater is among the best. It adopts the latest MOSFET and IGBT power units and the latest frequency control methods and techniques, and provides high efficiency, low energy consumption and very high output power. Through this, it achieves efficient and quick heating of any targeted area, and is highly useful when heating metals.

It has a 100% load design, which means that it can work 24 hours without stopping. Should there be a problem, there is an infrared temperature detector which alarms the operator if the machine overheats, and it also allows easier temperature control and simplifies manual operation.

Specifications:

  • Input Voltage: 180-245 V
  • Max. Inductive Power: 6 KW
  • Max. Input Power: 6 KW
  • Fluctuating Frequency: 500-2200 KHz
  • Output Current: 5-30 A
  • Min. Water Temperature: 26℃ (78.8℉)
  • Max. Heating Temperature: 1800℃ (3272℉)
  • Time Settings: 0.1 to 99 seconds
  • Water Temperature Protection Point: 40℃ (104℉)
  • Flow Rate of Cooling Water: 2-5 L/min
  • Min. Water Pressure: 0.2 MPa
  • Head of Cooling Water: ≥ 30 m (98 ft)
  • Min. Wire Gauge: 9 gauge
  • Circuit Breaker: ≥ 40 A

Notes:

  1. This machine cannot be used with a plug. A wire will be necessary to connect the machine to power source directly (the cross-sectional area of power line must be larger than 6 square milimeters.)
  2. The water temperature must not be lower than 26℃ to prevent a large temperature difference from the ambient temperature, which will cause condensation on the water pipes to form water droplets.

Model Options:

Model Max. Inductive Power Max. Input Power Output Current Turns Ratio Description
USS-HFIH00001 15 KW 7 KW 200-600 A 16:1 The length of the coil that can be heated is about 1 meter, which is used to heat relatively small metal parts. It will be faster if the outer diameter of the workpiece is less than 30mm.
USS-HFIH00011 25 KW 16 KW 200-1400 A 16:2 The 220V one can be used with water cooler. The length of the coil that can be heated reaches 2-2.8 meters, which can be used to smelt 2kg copper.
USS-HFIH00003 6 KW 6 KW 5-30 A 18:1 The length of the coil that can be heated is about 1 meter, which is used to heat relatively small metal parts. It will be faster if the outer diameter of the workpiece is less than 30mm.
USS-HFIH00012 18:2 Used for heating workpieces with an outer diameter less than 12mm or quenching
USS-HFIH00010
