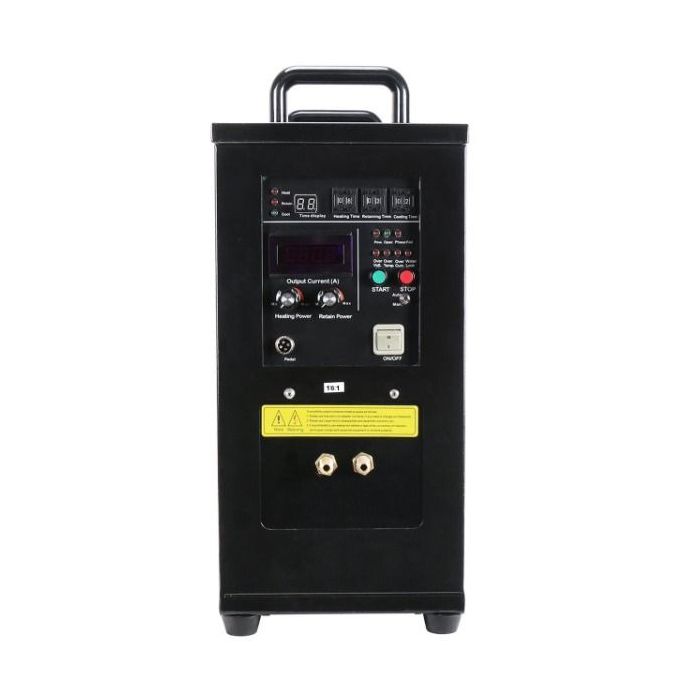

25 KW High Frequency Induction Heater 30-80 KHz, 18:1 Turns Ratio, Three Phase 480 V

$2,399.99
In stock
SKU
JFHFIH00003-480V

When it comes to inductive heating, the High-Frequency Induction Heater (Model HFIH00003) is among the best in the market. It is equipped with the latest MOSFET and IGBT power units, along with advanced frequency control methods, ensuring high efficiency, low energy consumption, and exceptional output power. This induction heater enables efficient and rapid heating of targeted areas, particularly useful for heating metals. With a 100% load design, it can operate continuously for 24 hours. The machine features an infrared temperature detector that alerts the operator in case of overheating, facilitating temperature control and simplifying manual operation.

Specifications:

  • Input Voltage: Three Phase; 480 V
  • Max. Inductive Power: 25 KW
  • Max. Input Power: 16 KW
  • Fluctuating Frequency: 30-80 KHz
  • Output Current: 200-1400 A
  • Max. Heating Temperature: 1200℃ (2192℉)
  • Time Settings: 01 to 99 seconds
  • Water Temperature Protection Point: 40℃ (104℉)
  • Flow Rate of Cooling Water: ≥ 7.5 L/min
  • Min. Water Pressure: 0.3 MPa
  • Head of Cooling Water: ≥ 30 m (98 ft)
  • Min. Wire Gauge: 9 gauge
  • Net Weight: 25 kg (55 lbs)
  • Product Dimensions: 22" x 9" x 19"
  • Turns Ratio: 18:1
  • Circuit Breaker: ≥ 30 A

Applications:

  1. Brazing: Hybrid welding of different materials. Workpiece size should be less than 1.2" x 1.2" x 1.2".
  2. Diathermy: Suitable for workpieces with a diameter less than 5 mm (3/16").
  3. Sealing: Ideal for sealing and capping various machines, considering the metal type used.
  4. Hardening: Heat-treat many metals for hardening, often requiring quenching after heating.
  5. Annealing: Heat-treated metals may become softer; results vary based on metal type.
  6. Soldering: Similar to brazing, ensuring clean surfaces for solder to melt quickly.
  7. Smelting: Capable of smelting various metals like copper, silver, and gold.

Packing List:

  • 1 x Induction Heater
  • 1 x Foot pedal
  • 3 x Fuse
  • 4 x Clamps (stainless steel)
  • 2 x Tubing (copper) for connecting your coil (0.5 ft each)
  • 1 x Tubing (copper) to create your own coil (5 ft long)
  • 1 x Coil (copper) approximately 3.3 ft long
  • 1 x Hose (rubber) around 32 ft long, 3/4" diameter

Notes:

  1. A heating coil with a diameter of 30 mm and a 1.5 m M6 copper tube is included for free. Contact us at service@domain.com for additional heater coils or custom dimensions.
  2. This machine requires a direct power connection (power line cross-sectional area must exceed 6 square millimeters) and cannot be used with a plug.
  3. Maintain a minimum water temperature of 26℃ to prevent condensation on the water pipes.

Other Models and Specifications:

Model Max. Inductive Power Max. Input Power Output Current Turns Ratio Description
HFIH00001 15 KW 7 KW 200-600 A 16:1 Heats up to 1-meter coil for small metal parts; optimal for parts with outer diameter <30mm. Compatible with water cooler (220V).
HFIH00011 25 KW 16 KW 200-1400 A 16:2 Allows 2-2.8 meters coil heating for smelting 2kg copper.
HFIH00012 6 KW 6 KW 5-30 A 18:1 Designed for heating workpieces with outer diameter <12mm or for quenching.
