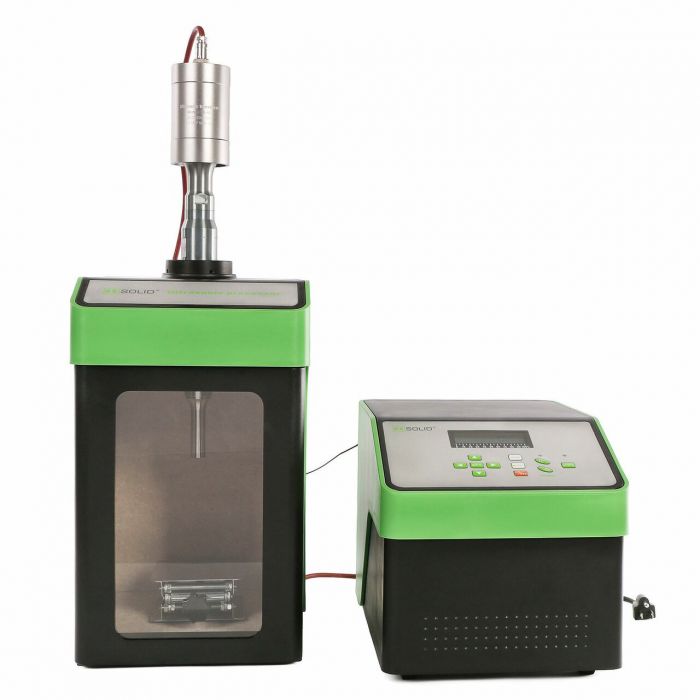

1800W Ultrasonic Homogenizer, 50ml to 3L Ultrasonicator Cell Disruptor

Ultrasonic homogenizer designed for laboratory use, ideal for mixing, emulsifying, homogenizing, disrupting cells, and reducing particle size in samples. Features include an LCD digital display, 99 hours total working time, variable output for pulsation, temperature indicator to prevent overheating, easy-to-use programming for optimal efficiency, automatic amplitude control, sound abating chamber to reduce cavitation noise, and duty ratio of 0-100% based on specific needs.

Technical Parameters:

• Sample Capacity:
  • 500ul-10ml - Probe Diameter: Φ 2 mm - Recommended Container: EP tube, microcentrifuge tube, or small tube
  • 500ul-50ml - Probe Diameter: Φ 3 mm
  • 2ml-100ml - Probe Diameter: Φ 6 mm - Recommended Container: small tube, diameter <10mm, or small beaker
  • 5ml-200ml - Probe Diameter: Φ 8 mm - Recommended Container: small tube, diameter <10mm
  • 5ml-200ml - Probe Diameter: Φ 10mm - Recommended Container: Beaker or container based on sample capacity
  • 10ml-300ml - Probe Diameter: Φ 13 mm
  • 20ml-500ml - Probe Diameter: Φ 16 mm
  • 20ml-500ml - Probe Diameter: Φ 18 mm
  • 50ml-2000ml - Probe Diameter: Φ 20 mm
  • 50ml-3000ml - Probe Diameter: Φ 25 mm
  • 50ml-3000ml - Probe Diameter: Φ 30 mm
• Specifications:
  • Model: USS-HLUH00019
  • Frequency Range: 20KHz
  • Output Power: 1800 W
  • Total Working Timer: 1 sec to 99 hours
  • Ultrasonic Output Impulse: 1 sec to 99 min on timer
  • Duty Ratio: 0-100%
  • Probe Diameter: 25 mm
  • Sample Processing Volume: 50-3000 ml
  • Packing Size: 20” * 14” * 30”
  • Gross Weight: 15 kg
  • Power Supply: AC 110V, 60 Hz

Model Comparison:

Introduction Video | Instruction Manual
